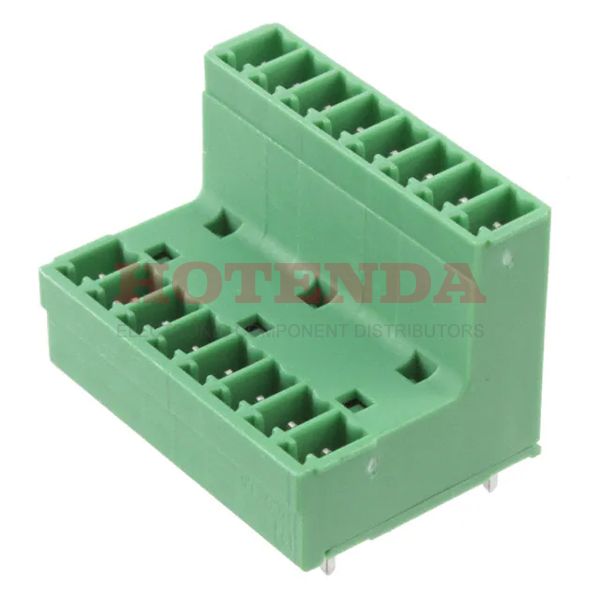

Name: 1830460
Brand: Phoenix Contact
SKU: 1830460
Price: 11.41000 USD
Availability: InStock

new

1830460

Manufacturer part number:1830460

Manufacturer:Phoenix Contact

Description:1830460 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1830460 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	118.000014g
Packaging	Bulk
Published	2011
Series	COMBICON MCDV
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	16
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
Additional Feature	PBT, 94V-0
Voltage - Rated DC	160V
Pitch	0.150 3.81mm
Orientation	Straight
Depth	22.7mm
Insulation Height	0.862 21.89mm
Current Rating	8A
Termination Style	Solder
Approval Agency	CB, CSA, VDE, cULus
Lead Pitch	3.81mm
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	2
Current	8A
Number of Decks	1
Voltage - IEC	320V
Number of Ways	8
Safety Approval	UL
Header Orientation	Vertical
Number of Positions Per Level	8
Fastening Method	CONNECTOR
Height	25.3mm
Length	31.87mm
Width	31.87mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1830460 Product Details

1830460 Overview

It comes in Plug packaging.The device's mounting type is Through Hole.It is necessary to use a Bulk case for packaging the product.The product is a member of the COMBICON MCDV Series.Furthermore, there are other features available, such as PBT, 94V-0, to name a few.By Through Hole it's mounted.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
