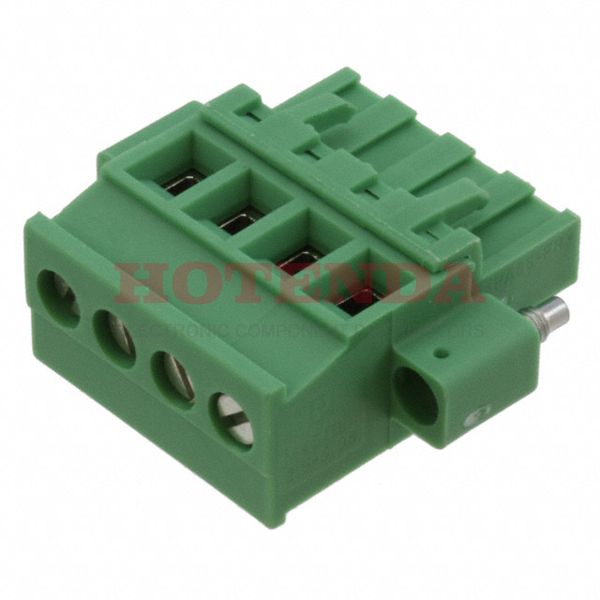

Name: 1835119
Brand: Phoenix Contact
SKU: 1835119
Price: 5.57000 USD
Availability: InStock

new-10%

1835119

Manufacturer part number:1835119

Manufacturer:Phoenix Contact

Description:1835119 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1835119 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	133.000002g
Packaging	Bulk
Published	2010
Series	COMBICON MVSTBR
Feature	Mating Flange, Retention Latches (Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	250V
Pitch	0.200 5.08mm
Orientation	Straight
Depth	12.6mm
Insulation Height	1.024 26.01mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	4
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	12A
Number of Levels	1
Current	10A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Current - UL	15A
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	26mm
Length	30.48mm
Width	30.48mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1835119 Product Details

1835119 Overview

Packaging for this item is Screw, Socket.Free Hanging (In-Line) is the type of mounting for the device.To package the product, we use a Bulk case.It's part of the COMBICON MVSTBR Series.A number of advantages can be derived from its Mating Flange, Retention Latches (Wire Side) feature.Free Hanging, Panel mounts the part.Ensure that the supply voltage of this chip does not exceed 250V.Other Plug, Female Sockets products share lots of benefits with this part.
