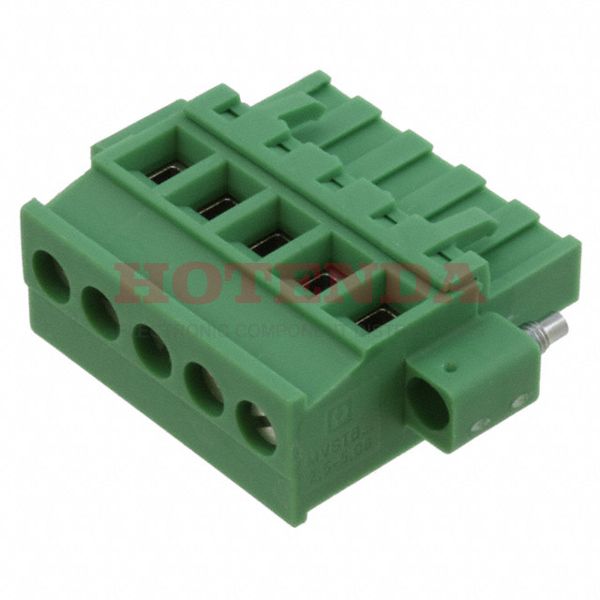

Name: 1835504
Brand: Phoenix Contact
SKU: 1835504
Price: 6.93000 USD
Availability: InStock

new-10%

1835504

Manufacturer part number:1835504

Manufacturer:Phoenix Contact

Description:1835504 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1835504 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	1.200205kg
Packaging	Bulk
Published	2010
Series	COMBICON MVSTBR
Feature	Mating Flange, Retention Latches (Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	5
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
Pitch	0.197 5.00mm
Insulation Height	1.024 26.01mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	5
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Screw Size	M3
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1835504 Product Details

1835504 Overview

The product is packaged in Screw.This device is mounted in the Free Hanging (In-Line) position.The product is packaged in a Bulk case.Among the products in the COMBICON MVSTBR Series, it is one of the most popular.Then there's PA, 94V-0, for example.Several benefits come from the Mating Flange, Retention Latches (Wire Side) feature.There's a Free Hanging mount on the part.Other Plug, Female Sockets products share lots of benefits with this part.
