1841336

1841336

1841336

Phoenix Contact

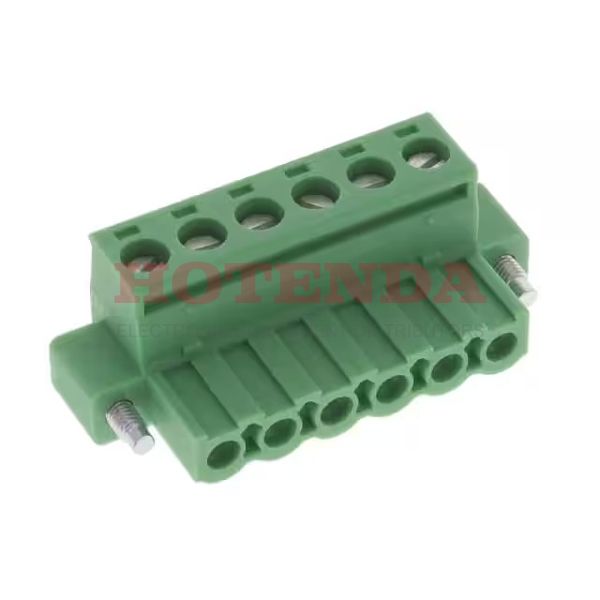

1841336 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1841336 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 6 Weeks
Mount Free Hanging, Plug-In
Mounting Type Free Hanging (In-Line)
Weight 10.910002g
PackagingBulk
Published 2011
Series COMBICON MSTB
Feature Mating Flange
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 6
Color Green
Voltage - Rated 250V
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Current Rating12A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 15A
Wire Gauge (Max) 12 AWG
Wire Gauge (Min) 24 AWG
Contact Mating Finish Gold
Wire Gauge or Range - AWG 12-30 AWG
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 7mm
Number of Positions Per Level 6
Screw Size M3
Length 25.4mm
RoHS StatusRoHS Compliant
In-Stock:607 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$11.027857$11.027857
10$10.403640$104.0364
100$9.814753$981.4753
500$9.259202$4629.601
1000$8.735096$8735.096

1841336 Product Details

1841336 Overview


The product comes in a package of Screw.This device has a mounting type of Free Hanging (In-Line).It has been determined that a Bulk case is necessary to package the product.Product number COMBICON MSTB belongs to the COMBICON MSTB Series.As a result of its Mating Flange feature, it possesses a great deal of power.This part is mounted by Free Hanging, Plug-In. As with other Plug, Female Sockets products, this part has a lot of benefits.

1841336 Features


COMBICON MSTB series

1841336 Applications


There are a lot of Phoenix Contact 1841336 Terminal Blocks applications.

  • Anywhere power is distributed
  • Embedded systems
  • Data Technology
  • All Electrical Machinery
  • Medical technology
  • Blowers
  • Electrical substations
  • Control panels
  • Measuring & Control Technology
  • Transportation
