Name: 1843059
Brand: Phoenix Contact
SKU: 1843059
Price: 38.21000 USD
Availability: InStock

new

1843059

Manufacturer part number:1843059

Manufacturer:Phoenix Contact

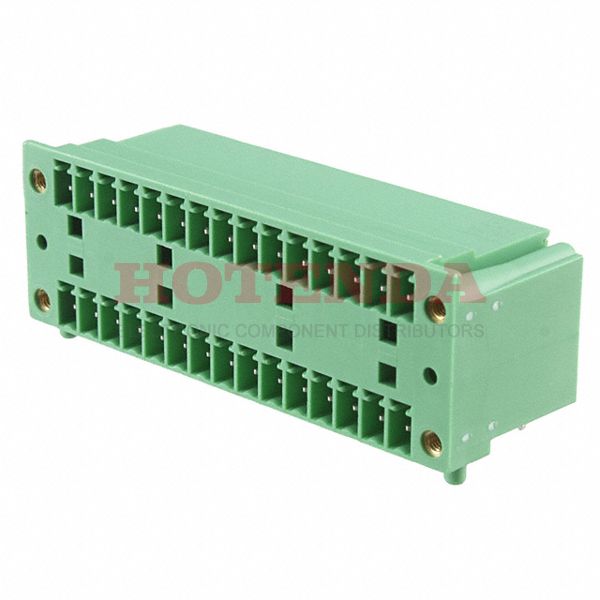

Description:Bulk 0.150 3.81mm Green 2 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON MCD Polyamide (PA), Nylon Tin

Case Package:SOT-23

Datasheet:1843059 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	117.000013g
Packaging	Bulk
Series	COMBICON MCD
Published	2010
Feature	Board Guide, Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	30
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PBT, 94V-0
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Depth	3mm
Insulation Height	0.894 22.71mm
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Number of Levels	2
Current	8A
Contact Mating Finish	Tin
Voltage - UL	300V
Number of Decks	1
Voltage - IEC	320V
Number of Ways	15
Safety Approval	UL
Header Orientation	90°, Right Angle
Number of Positions Per Level	15
Length	3mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1843059 Product Details

1843059 Overview

There is a Through Hole mounting type for the device.This product is packaged in a case marked Bulk.Product number COMBICON MCD belongs to the COMBICON MCD Series.Further, there are features such as PBT, 94V-0, to name only a few.In many ways, it is more powerful due to its Board Guide, Mating Flange feature.There is a Through Hole mount on the part.There are a lot of similarities between this part and other Header, Male Pins, Shrouded (4 Side) products.
