Name: 1843185
Brand: Phoenix Contact
SKU: 1843185
Price: 18.57000 USD
Availability: InStock

new

1843185

Manufacturer part number:1843185

Manufacturer:Phoenix Contact

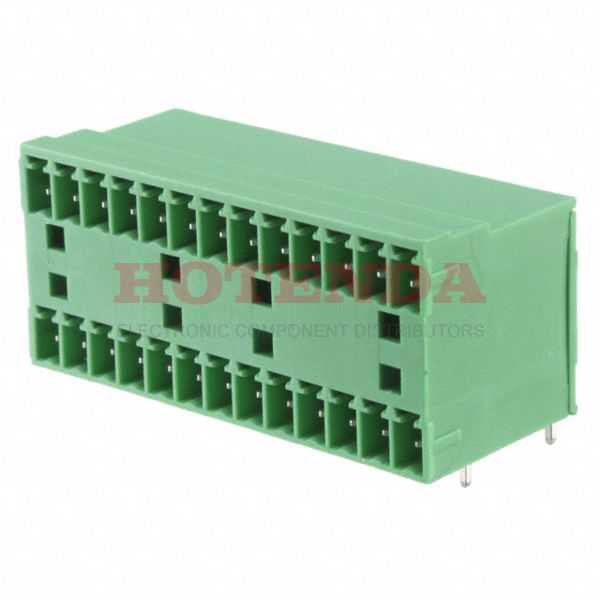

Description:Bulk 0.150 3.81mm Green 2 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON MCD Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:1843185 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	117.000013g
Packaging	Bulk
Series	COMBICON MCD
Published	2009
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	26
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
Additional Feature	PBT, 94V-0
HTS Code	8536.69.40.40
Pitch	0.150 3.81mm
Orientation	Right Angle
Depth	21.9mm
Insulation Height	0.894 22.71mm
Current Rating	8A
Termination Style	Solder
Approval Agency	CB, CSA, VDE, cULus
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	8A
Number of Levels	2
Current	8A
Number of Decks	1
Voltage - IEC	320V
Number of Ways	13
Safety Approval	UL
Header Orientation	90°, Right Angle
Number of Positions Per Level	13
Height	26.2mm
Length	50.92mm
Width	50.92mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1843185 Product Details

1843185 Overview

Packaging is in the form of Plug.This device has a Through Hole mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the COMBICON MCD Series.Other features include PBT, 94V-0, to name just a few.There is a mounting hole at Through Hole.There are many benefits that this part shares with other Header, Male Pins, Shrouded (4 Side) products as well.
