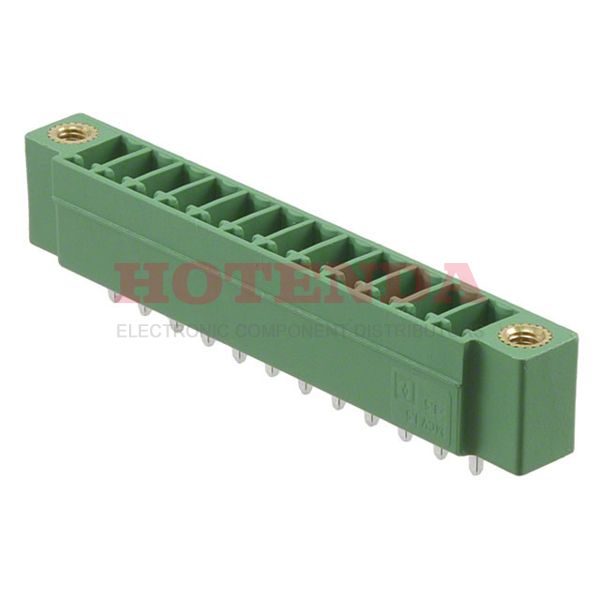

Name: 1843321
Brand: Phoenix Contact
SKU: 1843321
Price: 7.13000 USD
Availability: InStock

new-10%

1843321

Manufacturer part number:1843321

Manufacturer:Phoenix Contact

Description:1843321 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1843321 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Published	2003
Series	COMBICON MCV
Feature	Mating and Mounting Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PBT, 94V-0
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Orientation	Straight
Depth	7.25mm
Insulation Height	0.362 9.20mm
Current Rating	8A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.138 3.50mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Number of Decks	1
Voltage - IEC	250V
Number of Ways	12
Safety Approval	UL
Header Orientation	Vertical
Number of Positions Per Level	12
Height	12.7mm
Length	52.3mm
Width	52.3mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1843321 Product Details

1843321 Overview

The product comes in a package of Plug.This device has a mounting type of Through Hole.In order to package the product, a Bulk case is used.There is a product in the COMBICON MCV Series.In addition, there are other features, such as PBT, 94V-0, to mention just a few.A number of aspects of its Mating and Mounting Flange feature make it more powerful.You've got Through Hole mounted on the part.There are many benefits that this part shares with other Header, Male Pins, Shrouded (4 Side) products as well.
