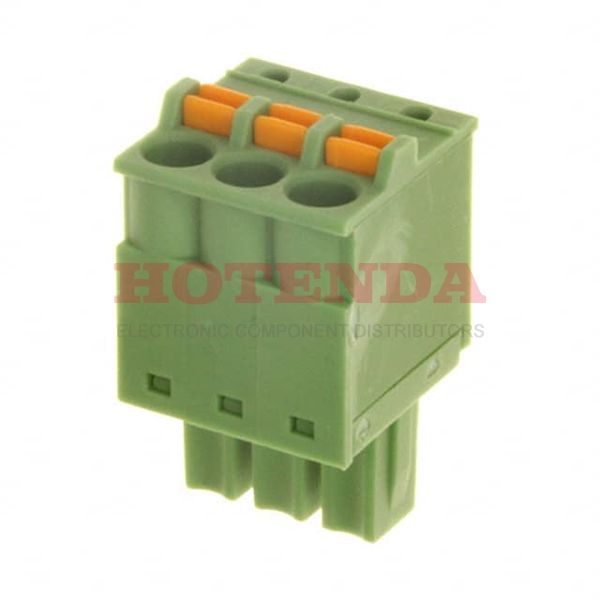

1851054

1851054

1851054

Phoenix Contact

1851054 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1851054 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Contact MaterialCopper
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 101.999997g
PackagingBulk
Published 2010
Series COMBICON FK-MCP
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional FeaturePA, 94V-0
Pitch 0.150 3.81mm
Orientation Straight
Depth 20.8mm
Insulation Height 0.488 12.40mm
Current Rating8A
Termination Style Screwless - Leg Spring, Push-In Spring
Number of Contacts 3
Voltage 300V
Max Supply Voltage160V
Max Current Rating 8A
Number of Levels 1
Current 8A
Wire Gauge (Max) 28 AWG
Wire Gauge (Min) 16 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 16-28 AWG
Voltage - IEC 320V
Number of Ways 3
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.14-1.5mm2
Wire Strip Length 9mm
Fastening Method SPRING LOADED
Height 12.4mm
Length 12.22mm
Width 20.8mm
Material Flammability Rating UL94 V-0
Radiation HardeningNo
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:1084 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$5.72000$5.72
10$5.56100$55.61
50$5.19760$259.88
100$4.78170$478.17
250$4.41788$1104.47
500$4.20998$2104.99

1851054 Product Details

1851054 Overview


It comes in Socket packaging.Free Hanging (In-Line) is the type of mounting for the device.We package the product with a Bulk case.There is a product in the COMBICON FK-MCP Series.Additionally, there are other features such as PA, 94V-0.Free Hanging is the mounting point for the part.Ensure that this chip's supply voltage does not exceed 160V volts.This part shares lots of benefits with other Plug, Female Sockets products.

1851054 Features


COMBICON FK-MCP series

1851054 Applications


There are a lot of Phoenix Contact 1851054 Terminal Blocks applications.

  • Telecommunications
  • Embedded systems
  • Electrical substations
  • Energy efficient lighting (LED)
  • Measuring & Control Technology
  • Datacom
  • Transportation
  • Refrigeration control
  • Control panels
  • Medical technology
