Name: 1843978
Brand: Phoenix Contact
SKU: 1843978
Price: 10.63000 USD
Availability: InStock

new

1843978

Manufacturer part number:1843978

Manufacturer:Phoenix Contact

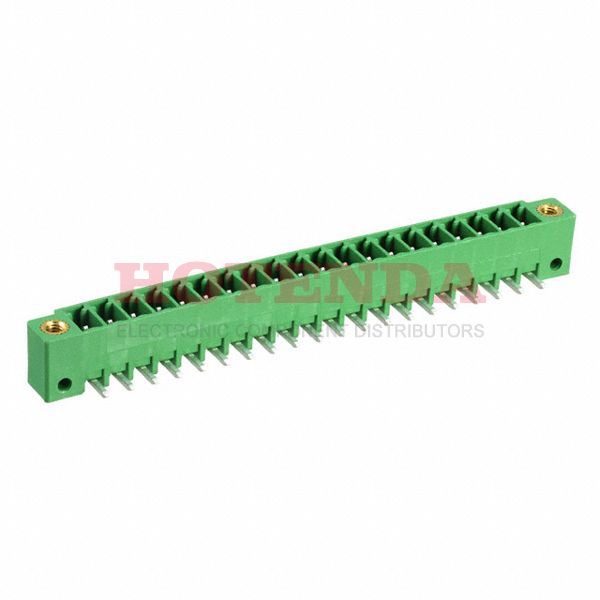

Description:Bulk 0.138 3.50mm Green 1 Levels Through Hole Header, Male Pins, Shrouded (4 Side) COMBICON MC Polybutylene Terephthalate (PBT) Tin

Case Package:SOT-23

Datasheet:1843978 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polybutylene Terephthalate (PBT)
Weight	113.398093g
Packaging	Bulk
Series	COMBICON MC
Published	2011
Feature	Mating and Mounting Flange
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	20
Color	Green
Number of Rows	1
Voltage - Rated	160V
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	9.2mm
Insulation Height	0.285 7.25mm
Current Rating	8A
Termination Style	Solder
Number of Contacts	20
Housing Color	Green
Voltage	300V
Contact Tail Length	0.134 3.40mm
Max Current Rating	8A
Number of Levels	1
Current	8A
Contact Mating Finish	Tin
Voltage - UL	300V
Current - UL	8A
Voltage - IEC	250V
Positions Per Level	20
Header Orientation	90°, Right Angle
Current - IEC	8A
Number of Positions Per Level	20
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1843978 Product Details

1843978 Overview

Through Hole is the type of mounting for the device.To package the product, a Bulk case is used.The product is a member of the COMBICON MC Series.It is more powerful in many ways due to its Mating and Mounting Flange feature.It is mounted by Through Hole.Compared to other Header, Male Pins, Shrouded (4 Side) products, this part has a lot of benefits to offer.
