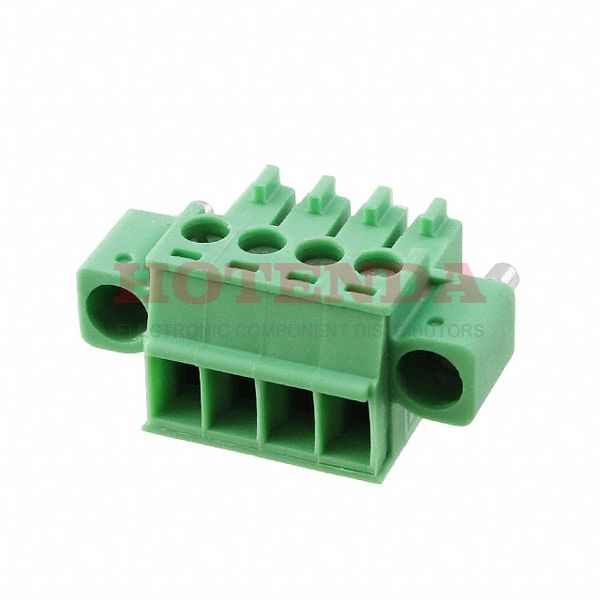

Name: 1847071
Brand: Phoenix Contact
SKU: 1847071
Price: 5.98000 USD
Availability: InStock

new-10%

1847071

Manufacturer part number:1847071

Manufacturer:Phoenix Contact

Description:1847071 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1847071 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Contact Material	Copper
Mount	Cable, Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	98.999993g
Packaging	Bulk
Published	2011
Series	COMBICON MC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	160V
Pitch	0.138 3.50mm
Orientation	Right Angle
Depth	16.1mm
Insulation Height	0.437 11.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	CB, CSA, VDE, cULus
Number of Contacts	4
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	7mm
Screw Size	M2
Height	16.1mm
Length	24.2mm
Width	24.3mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1847071 Product Details

1847071 Overview

It comes in a Screw, Socket package.Mounting type Free Hanging (In-Line) is assigned to the device.Packaging for the product is carried out via a Bulk case.It's from the COMBICON MC Series.There are a number of advantages to its Mating Flange feature.Cable, Free Hanging, Panel is used to mount the part.There should be no voltage over 160V on the supply line of this chip.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
