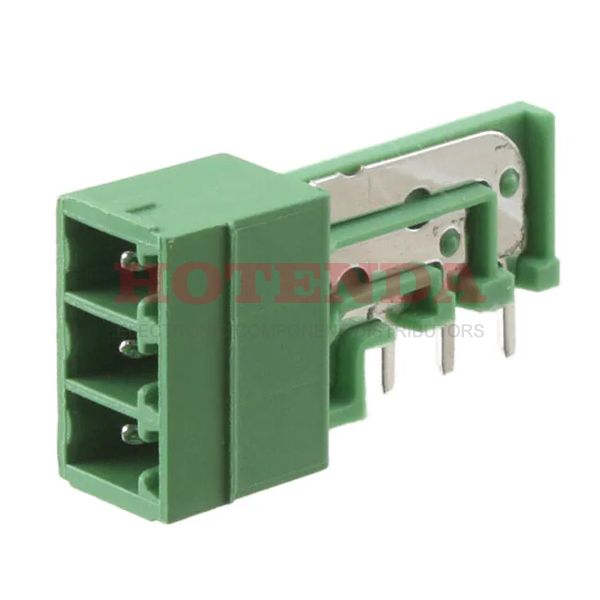

Phoenix Contact

1861659 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1861659 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Through Hole
Mounting Type Through Hole
Housing Material Polyamide
Weight 115.000011g
PackagingBulk
Published 2011
Series COMBICON MCO
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Plug
Type Header, Male Pins, Shrouded (4 Side)
Number of Positions 3
Color Green
Number of Rows 1
Voltage - Rated 125V
Additional FeaturePA, UL 94 V-0
Pitch 0.150 3.81mm
Orientation Right Angle
Depth 7.25mm
Insulation Height 0.505 12.82mm
Current Rating8A
Termination Style Solder
Voltage 300V
Max Current Rating 8A
Number of Levels 1
Current 8A
Number of Decks 1
Voltage - IEC 200V
Number of Ways 3
Safety Approval UL; VDE
Header Orientation 90°, Right Angle, Vertical
Height 12.82mm
Length 12.82mm
Width 25mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:1648 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$4.38000$4.38
10$4.25800$42.58
50$3.97940$198.97
100$3.66120$366.12
250$3.38256$845.64
500$3.22340$1611.7

1861659 Product Details

1861659 Overview


The product comes in a package of Plug.Through Hole is the type of mounting for the device.In order to package the product, a Bulk case is used.It's part of the COMBICON MCO Series.Additionally, there are other features such as PA, UL 94 V-0.By Through Hole, the part is mounted.

1861659 Features


COMBICON MCO series

1861659 Applications


There are a lot of Phoenix Contact 1861659 Terminal Blocks applications.

  • Blowers
  • Measuring & Control Technology
  • Communication
  • Variable speed/frequency drivers
  • Energy efficient lighting (LED)
  • Industrial Automation
  • LED municipal outdoor and street lighting
  • Datacom
  • Control panels
  • All Electrical Machinery
