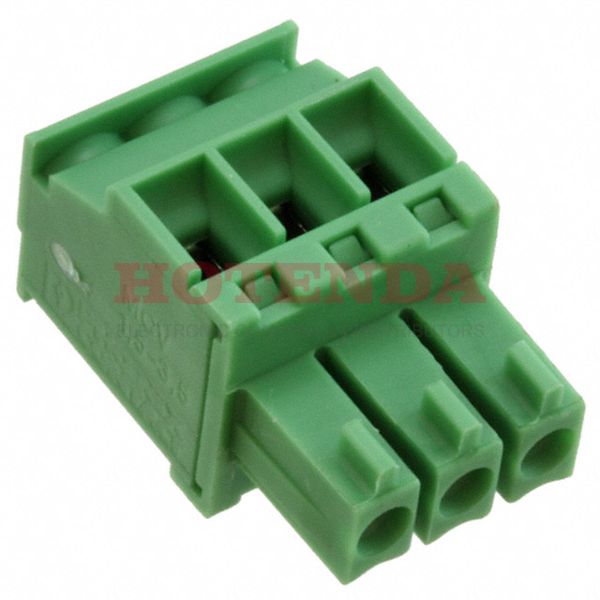

Name: 1863165
Brand: Phoenix Contact
SKU: 1863165
Price: 3.97000 USD
Availability: InStock

new-10%

1863165

Manufacturer part number:1863165

Manufacturer:Phoenix Contact

Description:1863165 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1863165 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	2.289989g
Packaging	Bulk
Published	2005
Series	COMBICON MCVR
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Additional Feature	PA, UL 94V-0
Voltage - Rated DC	160V
Pitch	0.138 3.50mm
Orientation	Straight
Depth	10.4mm
Insulation Height	0.752 19.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	160V
Approval Agency	CB, UL, VDE, cULus
Lead Pitch	3.5mm
Number of Contacts	3
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	3
Safety Approval	CB; CCA; CUL; GOST; UL; VDE
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.14-1.5mm2
Screw Size	M2
Stripping Length	7mm
Height	12.5mm
Length	11.92mm
Width	10.4mm
Thickness	7mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1863165 Product Details

1863165 Overview

The product is packaged in Screw, Socket.The device's mounting type is Free Hanging (In-Line).An Bulk case is utilized for packaging the product.This is from the COMBICON MCVR Series.Additionally, there are other features, such as PA, UL 94V-0.You've got Cable, Free Hanging mounted on the part.You should not supply this chip with more voltage than 160V.Other Plug, Female Sockets products share lots of benefits with this part.
