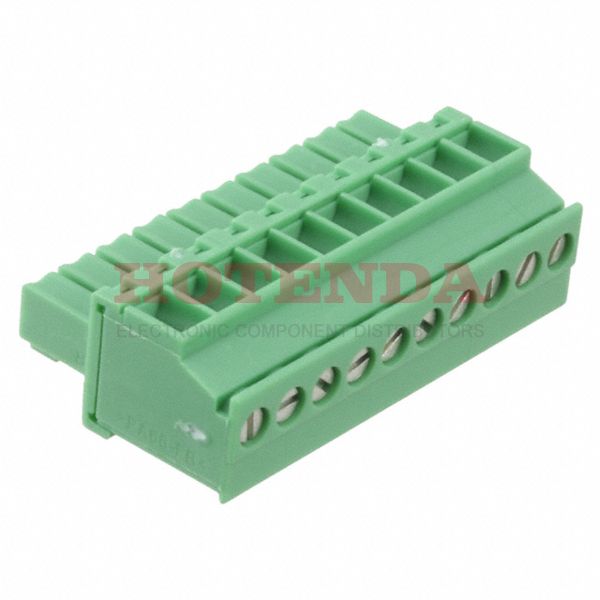

Name: 1862933
Brand: Phoenix Contact
SKU: 1862933
Price: 13.26000 USD
Availability: InStock

new

1862933

Manufacturer part number:1862933

Manufacturer:Phoenix Contact

Description:1862933 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1862933 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	7.500008g
Packaging	Bulk
Published	2008
Series	COMBICON MCVW
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Voltage - Rated DC	160V
Pitch	0.138 3.50mm
Orientation	Straight
Depth	19.1mm
Insulation Height	0.752 19.10mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage - Rated AC	160V
Approval Agency	CB, UL, VDE, cULus
Lead Pitch	3.5mm
Voltage	300V
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Number of Poles	10
Number of Decks	1
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	320V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	10
Safety Approval	UL
Plug Wire Entry	270°
Wire Gauge or Range - mm²	0.14-1.5mm2
Screw Size	M2
Stripping Length	7mm
Height	12.5mm
Length	35.8mm
Width	10.4mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1862933 Product Details

1862933 Overview

This product is packaged in a Screw, Socket cartonFree Hanging (In-Line) is the mounting type of the device.We use a Bulk case to package the product.Specifically, it is one of the products in the COMBICON MCVW Series.Additionally, there are other features such as PA, 94V-0.By Cable, Free Hanging it's mounted.There are a number of benefits that this part has in common with other Plug, Female Sockets products.
