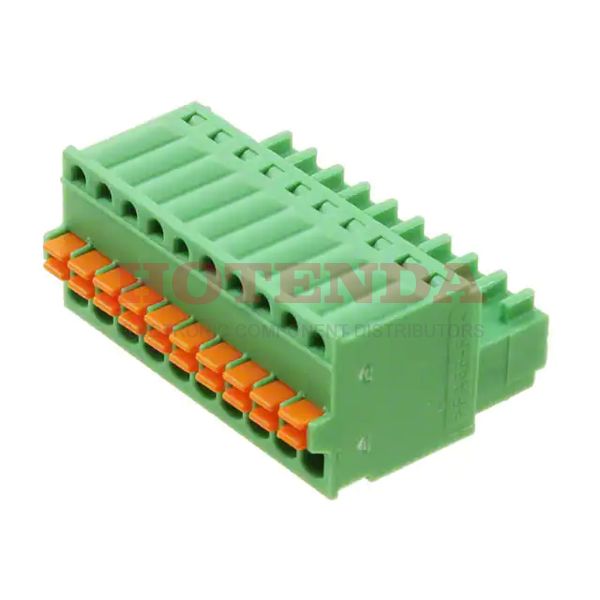

Name: 1881406
Brand: Phoenix Contact
SKU: 1881406
Price: 17.23000 USD
Availability: InStock

new

1881406

Manufacturer part number:1881406

Manufacturer:Phoenix Contact

Description:1881406 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1881406 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Copper
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	6.150004g
Packaging	Bulk
Published	2008
Series	MICRO-COMBICON FK-MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	100V
Additional Feature	PA, UL 94V-0
HTS Code	8536.69.40.40
Voltage - Rated DC	80V
Pitch	0.098 2.50mm
Orientation	Straight
Depth	19.2mm
Insulation Height	0.463 11.76mm
Current Rating	4A
Termination Style	Screwless - Leg Spring, Push-In Spring
Approval Agency	CB, UL, VDE
Lead Pitch	2.5mm
Number of Contacts	10
Voltage	125V
Max Supply Voltage	100V
Max Current Rating	4A
Number of Levels	1
Current	4A
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	26 AWG
Wire/Cable Gauge	20 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	20-28 AWG
Voltage - IEC	320V
Number of Ways	10
Safety Approval	UL; VDE
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-0.5mm2
Stripping Length	8mm
Wire Cross Section	0.5 mm2
Fastening Method	SPRING LOADED
Height	19.05mm
Length	25.6mm
Width	25.6mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1881406 Product Details

1881406 Overview

It comes in Socket packaging.Free Hanging (In-Line) is the mounting type of the device.Packaging is performed using a Bulk case.This is from the MICRO-COMBICON FK-MC Series.Further, there are features such as PA, UL 94V-0, to name only a few.There's a Free Hanging on the part.You should not supply this chip with more voltage than 100V.Other Plug, Female Sockets products benefit from this part as well.
