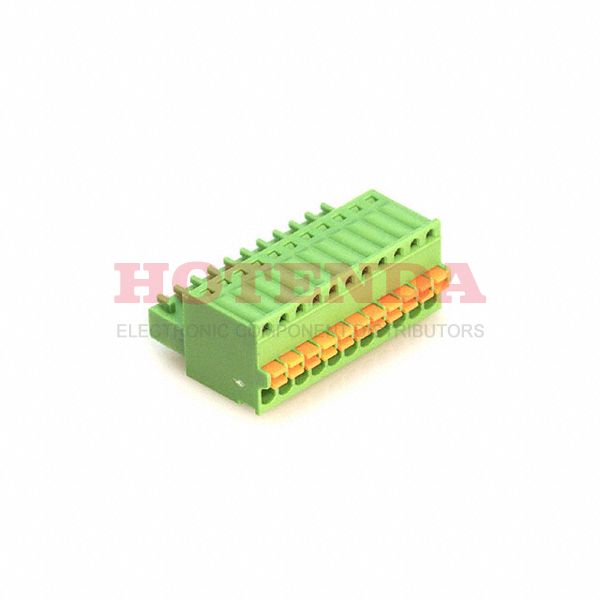

Name: 1881419
Brand: Phoenix Contact
SKU: 1881419
Price: 18.91000 USD
Availability: InStock

new

1881419

Manufacturer part number:1881419

Manufacturer:Phoenix Contact

Description:1881419 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1881419 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	6.300001g
Packaging	Bulk
Published	2010
Series	MICRO-COMBICON FK-MC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	100V
Additional Feature	PA, UL 94V0
HTS Code	8536.69.40.40
Voltage - Rated DC	80V
Pitch	0.098 2.50mm
Orientation	Straight
Depth	11.75mm
Insulation Height	0.463 11.76mm
Reach Compliance Code	unknown
Current Rating	4A
Termination Style	Screwless - Leg Spring, Push-In Spring
Approval Agency	CB, UL, VDE
Lead Pitch	2.5mm
Number of Contacts	11
Voltage	125V
Max Current Rating	4A
Number of Levels	1
Current	4A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	20 AWG
Number of Decks	1
Wire Gauge or Range - AWG	20-28 AWG
Voltage - IEC	320V
Number of Ways	11
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-0.5mm2
Stripping Length	8mm
Wire Cross Section	0.25 mm2
Fastening Method	SPRING LOADED
Height	19.05mm
Length	28.1mm
Width	19.2mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1881419 Product Details

1881419 Overview

This product is packaged in a Socket box.The mounting type of the device is Free Hanging (In-Line).To package the product, a Bulk case is used.As a product of the MICRO-COMBICON FK-MC Series, it can be found in this category.There are also other features like PA, UL 94V0, to name a few.This part is mounted by Cable, Free Hanging. Other Plug, Female Sockets products benefit from this part as well.
