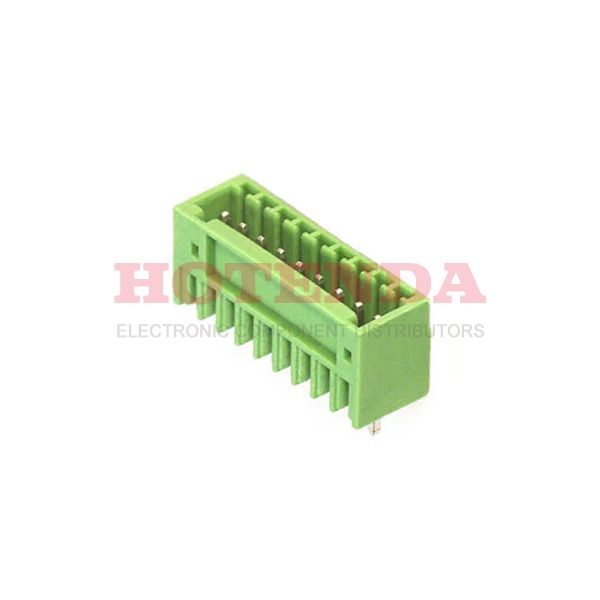

Name: 1881626
Brand: Phoenix Contact
SKU: 1881626
Price: 4.40000 USD
Availability: InStock

new-10%

1881626

Manufacturer part number:1881626

Manufacturer:Phoenix Contact

Description:1881626 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1881626 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Material	PBT
Housing Material	Polyamide (PA), Nylon
Weight	1.69g
Packaging	Bulk
Published	2003
Series	MICRO-COMBICON MCV
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Connector Type	Plug
Type	Header, Male Pins, Shrouded (4 Side)
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	80V
Pitch	0.098 2.50mm
Orientation	Straight
Depth	8.1mm
Insulation Height	0.398 10.11mm
Reach Compliance Code	unknown
Current Rating	4A
Termination Style	Solder
Approval Agency	UL
Voltage	125V
Contact Tail Length	0.138 3.50mm
Max Current Rating	4A
Number of Levels	1
Current	4A
Wire Gauge (Max)	20 AWG
Wire Gauge (Min)	26 AWG
Number of Poles	9
Number of Decks	1
Voltage - IEC	320V
Number of Ways	9
Safety Approval	UL
Header Orientation	Vertical
Height	13.6mm
Length	24.4mm
Width	24.4mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1881626 Product Details

1881626 Overview

Packaging is Plug.There is a mounting type of Through Hole for this device.Packaged in a Bulk case.The product is a part of the MICRO-COMBICON MCV Series.Mounting of the part is based on Through Hole.There are a number of benefits that this part has in common with other Header, Male Pins, Shrouded (4 Side) products.
