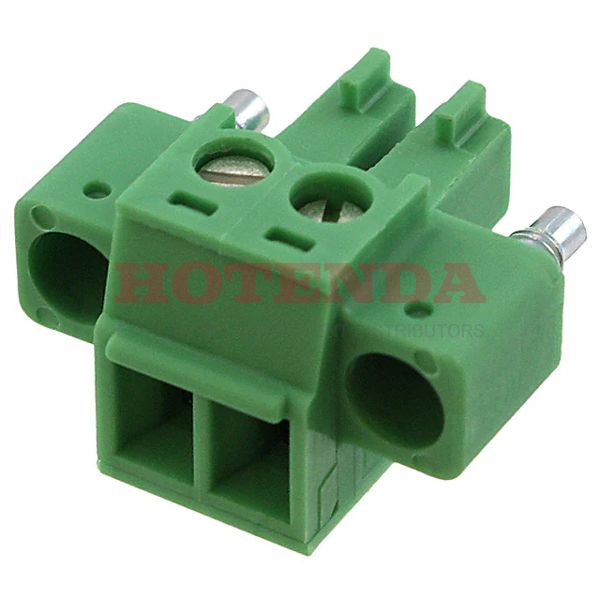

Name: 1900882
Brand: Phoenix Contact
SKU: 1900882
Price: 2.84000 USD
Availability: InStock

new-10%

1900882

Manufacturer part number:1900882

Manufacturer:Phoenix Contact

Description:1900882 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1900882 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging, Panel
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	2.390007g
Packaging	Bulk
Published	2011
Series	COMBICON MC
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Color	Green
Gender	Female
Voltage - Rated	250V
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	11.1mm
Insulation Height	0.437 11.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	2
Voltage	300V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	14 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	14-30 AWG
Voltage - IEC	630V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	2
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Wire Strip Length	7mm
Screw Size	M2
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1900882 Product Details

1900882 Overview

The product comes in a package of Screw.Free Hanging (In-Line) is the mounting type of the device.In order to package the product, a Bulk case is used.It's from the COMBICON MC Series.Many aspects of its Mating Flange feature increase its effectiveness.In this case, Free Hanging, Panel mounts the part.The benefts of this part are similar to those of other Plug, Female Sockets products.
