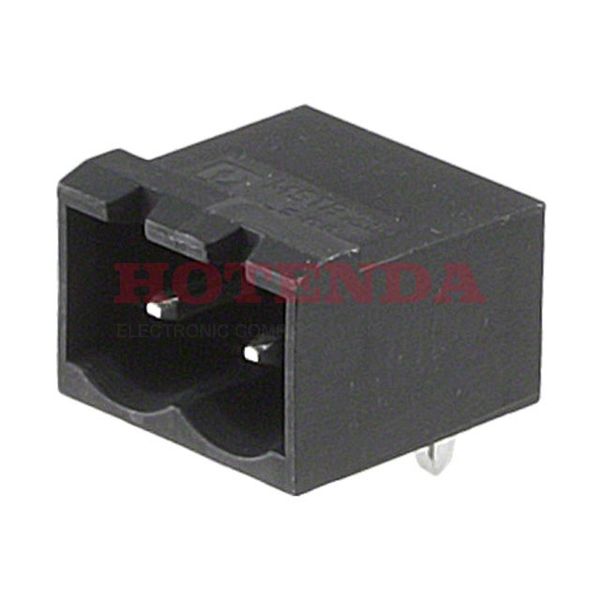

Name: 1902741
Brand: Phoenix Contact
SKU: 1902741
Availability: InStock

new-10%

1902741

Manufacturer part number:1902741

Manufacturer:Phoenix Contact

Description:1902741 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1902741 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	1.970008g
Packaging	Bulk
Published	2011
Series	COMBICON MSTBA
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	2
Color	Black
Number of Rows	1
Voltage - Rated	250V
Additional Feature	POLYAMIDE, 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	12.2mm
Insulation Height	0.350 8.89mm
Reach Compliance Code	unknown
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.114 2.90mm
Max Current Rating	12A
Number of Levels	1
Current	15A
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	400V
Number of Ways	2
Header Orientation	90°, Right Angle
Number of Positions Per Level	2
Length	12.16mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1902741 Product Details

1902741 Overview

Mounting type Through Hole is assigned to the device.An orange Bulk case is used to package the product.Among the products in the COMBICON MSTBA Series, it is one of the most popular.In addition, there are other features such as POLYAMIDE, 94V-0, to mention only a few.Through Hole represents the mounting point for the part.As with other Header, Male Pins, Shrouded (4 Side) products, this part also offers a wide range of benefits.
