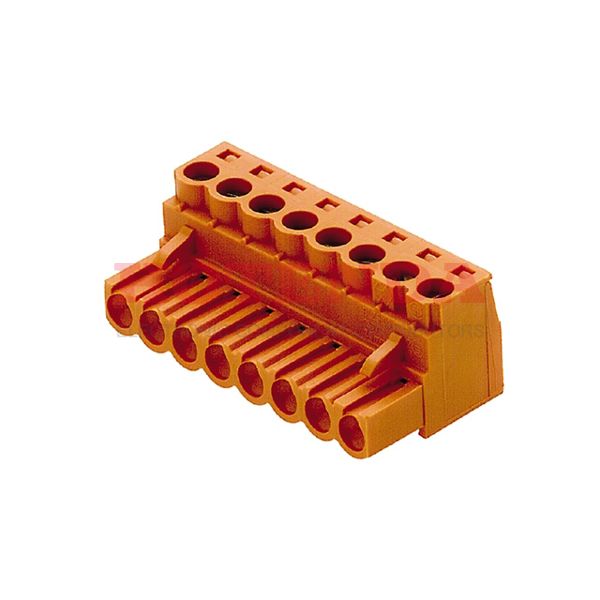

Name: 1571410000
Brand: Weidmüller
SKU: 1571410000
Availability: InStock

new-10%

1571410000

Manufacturer part number:1571410000

Manufacturer:Weidmüller

Description:1571410000 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Weidmüller stock available on our website

Case Package:SOT-23

Datasheet:1571410000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Material	Copper Alloy
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Published	2009
Series	Omnimate BL
JESD-609 Code	e3
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	Not Applicable
Termination	Screw
Type	Plug, Female Sockets
Number of Positions	8
Color	Orange
Number of Rows	1
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.197 5.00mm
Orientation	Right Angle
Ingress Protection	IP20
Insulation Height	0.598 15.19mm
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Number of Contacts	8
UL Flammability Code	94V-0
Voltage	300V
Max Current Rating	15A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.5-2.5mm2
Wire Strip Length	7mm
Current - IEC	19A
Screw Size	M2.5
Height	15.2mm
Length	40mm
Width	20mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1571410000 Product Details

1571410000 Overview

Mounting type Free Hanging (In-Line) is selected for the device.We pack the product in a Bulk case.A product of the Omnimate BL Series, it belongs to the range of products of that series.A number of aspects of its Retention Latches (Non-Wire Side) feature make it more powerful.There is a Cable, Free Hanging mount on the part.The device is operating at -50°C~100°C Operating Temperature.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.
