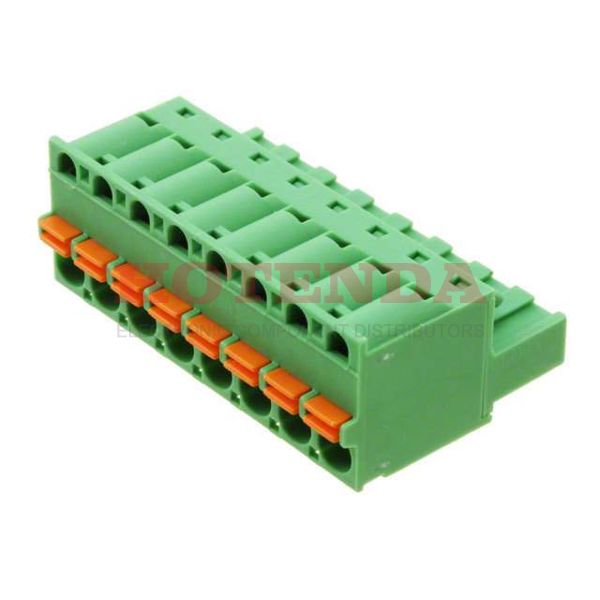

Name: 1910416
Brand: Phoenix Contact
SKU: 1910416
Price: 9.22000 USD
Availability: InStock

new

1910416

Manufacturer part number:1910416

Manufacturer:Phoenix Contact

Description:1910416 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1910416 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	1.200205kg
Packaging	Bulk
Published	2010
Series	COMBICON FKC
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
Pitch	0.197 5.00mm
Orientation	Straight
Depth	25.6mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screwless - Leg Spring, Push-In Spring
Approval Agency	CB, CSA, VDE, cULus
Number of Contacts	8
Voltage	300V
Max Supply Voltage	320V
Max Current Rating	12A
Number of Levels	1
Current	12A
Wire Gauge (Max)	12 AWG
Wire Gauge (Min)	24 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-26 AWG
Current - UL	10A
Voltage - IEC	630V
Number of Ways	8
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	10mm
Wire Cross Section	2.5 mm2
Fastening Method	SPRING LOADED
Height	25.6mm
Length	40.1mm
Width	40.1mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1910416 Product Details

1910416 Overview

The product is packaged in Socket.Free Hanging (In-Line) is the mount type.To package the product, a Bulk case is used.This product is part of the COMBICON FKC Series.As well as PA, 94V-0, to name a few.A number of aspects of its Retention Latches (Non-Wire Side) feature make it more powerful.Cable, Free Hanging mounts the part.This chip should not be supplied with voltage greater than 320V volts.Other Plug, Female Sockets products benefit from this part as well.
