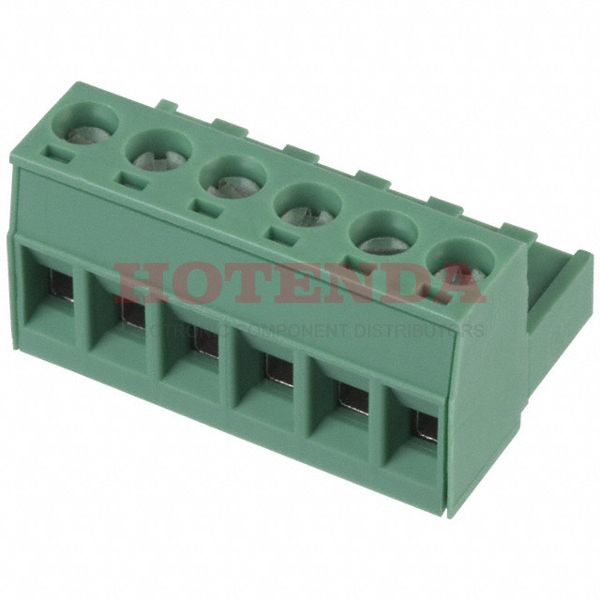

Name: 1911897
Brand: Phoenix Contact
SKU: 1911897
Price: 8.05000 USD
Availability: InStock

new-10%

1911897

Manufacturer part number:1911897

Manufacturer:Phoenix Contact

Description:1911897 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1911897 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	9.96001g
Packaging	Bulk
Published	2001
Series	COMBICON MSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, UL 94V0
Pitch	0.197 5.00mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	16A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	16A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Number of Positions Per Level	6
Screw Size	M3
Wire Cross Section	2.5 mm2
Height	18.2mm
Length	15mm
Width	30mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1911897 Product Details

1911897 Overview

The product comes in a package of Screw, Socket.Free Hanging (In-Line) is the mounting type for the device.A Bulk case is used for packaging.Specifically, it is one of the products in the COMBICON MSTB Series.Moreover, there are a number of other features, including PA, UL 94V0, to name just a few.Several benefits come from the Retention Latches (Non-Wire Side) feature.The part is mounted by Free Hanging.It shares many benefts with other Plug, Female Sockets products.
