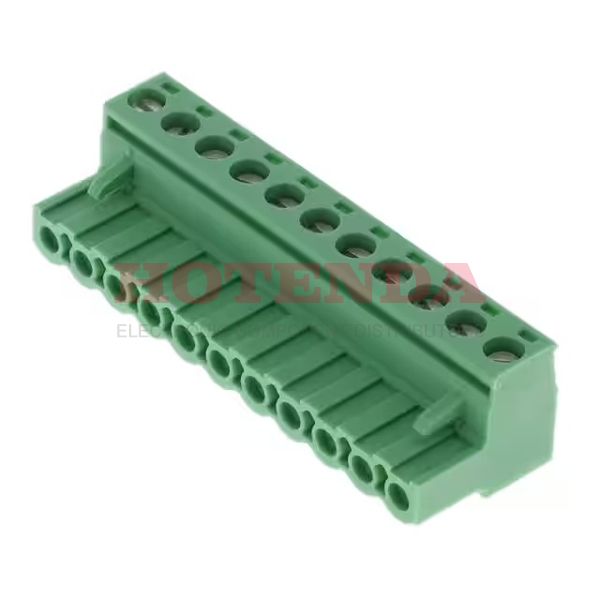

Name: 1912058
Brand: Phoenix Contact
SKU: 1912058
Price: 14.78000 USD
Availability: InStock

new

1912058

Manufacturer part number:1912058

Manufacturer:Phoenix Contact

Description:1912058 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1912058 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	18.670004g
Packaging	Bulk
Published	2001
Series	COMBICON MSTB
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, UL 94V0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Orientation	Straight
Insulation Height	0.591 15.00mm
Current Rating	16A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	11
Voltage	300V
Max Current Rating	16A
Number of Levels	1
Current	16A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	11
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Screw Size	M3
Wire Cross Section	2.5 mm2
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1912058 Product Details

1912058 Overview

Screw packaging is included.There is a mounting type of Free Hanging (In-Line) for this device.It's packaged in a Bulk case.Among the products in the COMBICON MSTB Series, it is one of the most popular.Moreover, there are a number of other features, including PA, UL 94V0, to name just a few.This feature makes it more powerful in a number of ways due to its Retention Latches (Non-Wire Side) feature.There is a mounting hole at Cable, Free Hanging.This part shares lots of benefits with other Plug, Female Sockets products.
