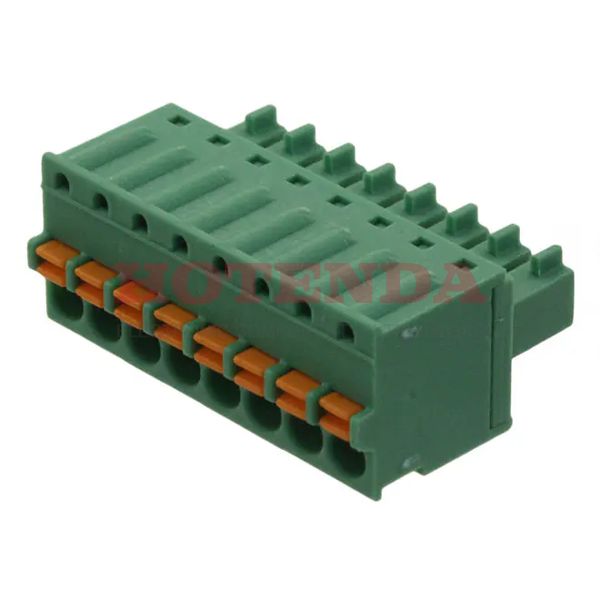

Name: 1851106
Brand: Phoenix Contact
SKU: 1851106
Price: 16.98000 USD
Availability: InStock

new

1851106

Manufacturer part number:1851106

Manufacturer:Phoenix Contact

Description:1851106 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1851106 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Material	Copper
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	101.999997g
Packaging	Bulk
Published	2005
Series	COMBICON FK-MCP
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Connector Type	Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	160V
Additional Feature	PA, 94V-0
Pitch	0.150 3.81mm
Orientation	Right Angle
Depth	20.8mm
Insulation Height	0.488 12.40mm
Current Rating	8A
Termination Style	Screwless - Leg Spring, Push-In Spring
Approval Agency	CB, CSA, UL, VDE, cULus
Number of Contacts	8
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	8A
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-28 AWG
Voltage - IEC	320V
Number of Ways	8
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.14-1.5mm2
Stripping Length	9mm
Fastening Method	SPRING LOADED
Height	20.8mm
Length	31.27mm
Width	20.8mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1851106 Product Details

1851106 Overview

You get it in Socket packaging.This device's mounting type is Free Hanging (In-Line).To package the product, we use a Bulk case.The product is a part of the COMBICON FK-MCP Series.Also, there's PA, 94V-0, to name a few.Mounted by Cable, Free Hanging.There should be no more than 160V voltage supplied to this chip.
