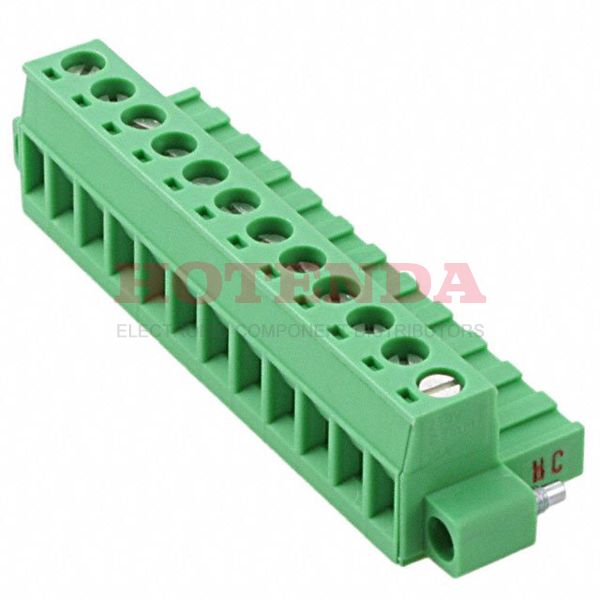

Name: 1912171
Brand: Phoenix Contact
SKU: 1912171
Price: 13.71000 USD
Availability: InStock

new

1912171

Manufacturer part number:1912171

Manufacturer:Phoenix Contact

Description:1912171 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1912171 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	21.330011g
Packaging	Bulk
Published	2001
Series	COMBICON MSTB
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	250V
Additional Feature	PA, UL 94V0
HTS Code	8536.69.40.40
Pitch	0.197 5.00mm
Insulation Height	0.591 15.00mm
Reach Compliance Code	unknown
Current Rating	16A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	16A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Voltage - UL	300V
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	12
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Number of Positions Per Level	12
Screw Size	M3
Wire Cross Section	2.5 mm2
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1912171 Product Details

1912171 Overview

The product comes in a package of Screw.This device is mounted in the Free Hanging (In-Line) position.An Bulk case is utilized for packaging the product.This product is in the COMBICON MSTB Series.Besides that, there's also PA, UL 94V0, to name a few.In many ways, its Mating Flange feature makes it more powerful.Free Hanging is used to mount the part.Many Plug, Female Sockets products share the same benefits as this part.
