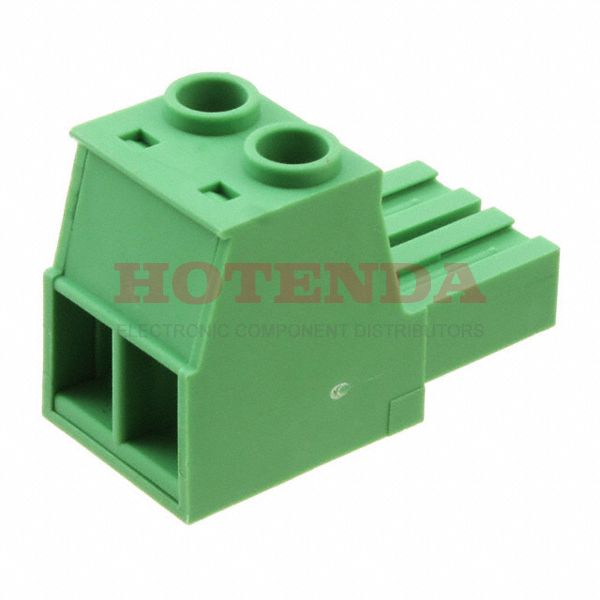

Name: 1913507
Brand: Phoenix Contact
SKU: 1913507
Price: 9.88000 USD
Availability: InStock

new

1913507

Manufacturer part number:1913507

Manufacturer:Phoenix Contact

Description:1913507 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1913507 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Silver
Mount	Cable, Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	16.86g
Packaging	Bulk
Published	2002
Series	COMBICON PC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	1kV
HTS Code	8536.69.40.40
Pitch	0.400 10.16mm
Orientation	Right Angle
Depth	39mm
Insulation Height	1.085 27.55mm
Reach Compliance Code	not_compliant
Current Rating	41A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	UL
Number of Contacts	2
Voltage	600V
Max Supply Voltage	1kV
Max Current Rating	41A
Number of Levels	1
Current	50A
Wire Gauge (Max)	8 AWG
Wire Gauge (Min)	18 AWG
Number of Decks	1
Wire Gauge or Range - AWG	8-20 AWG
Voltage - IEC	1kV
Torque - Screw	1.2-1.5 Nm (10.6-13.3 Lb-In)
Number of Ways	2
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.75-10mm2
Wire Strip Length	12mm
Screw Size	M4
Height	27.55mm
Length	19.36mm
Width	39mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1913507 Product Details

1913507 Overview

It comes in a Screw, Socket package.Free Hanging (In-Line) is the mounting type of the device.It is necessary to use a Bulk case for packaging the product.A member of the COMBICON PC Series.You've got Cable, Free Hanging, Plug-In mounted on the part.A supply voltage of 1kV is recommended for this chip.It is a part that shares many benefits with other products from the Plug, Female Sockets line.
