1947065

1947065

1947065

Phoenix Contact

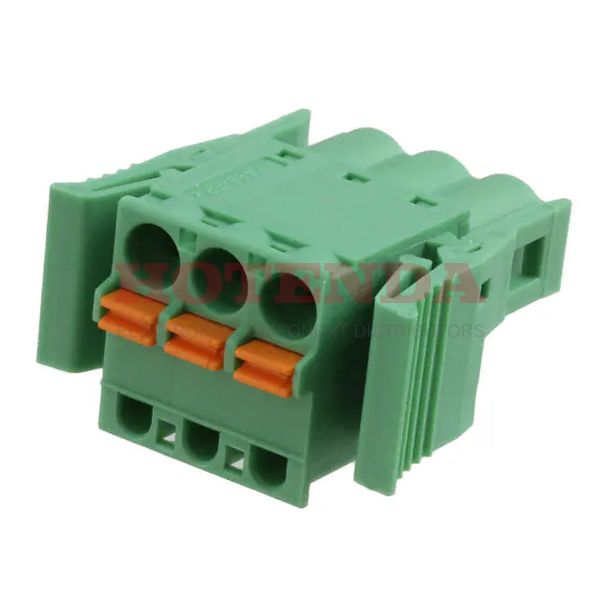

1947065 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1947065 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Tin
Housing Material Polyamide (PA), Nylon
Weight 1.59982kg
PackagingBulk
Published 2011
Series COMBICON FKC
Feature Latch Lock, Retention Latches (Non-Wire Side)
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Type Plug, Female Sockets
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 250V
Additional FeaturePA, 94V-0
Pitch 0.197 5.00mm
Insulation Height 0.591 15.00mm
Reach Compliance Code unknown
Current Rating12A
Termination Style Screwless - Push-In Spring
Voltage 300V
Number of Levels 1
Current 10A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Number of Decks 1
Wire Gauge or Range - AWG 12-26 AWG
Voltage - IEC 630V
Number of Ways 3
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 10mm
Current - IEC 12A
Number of Positions Per Level 3
Wire Cross Section 2.5 mm2
Fastening Method SPRING LOADED
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:1458 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$3.672308$3.672308
10$3.464442$34.64442
100$3.268341$326.8341
500$3.083341$1541.6705
1000$2.908812$2908.812

1947065 Product Details

1947065 Overview


Its mounting type is Free Hanging (In-Line).To package the product, a Bulk case is used.Product number COMBICON FKC belongs to the COMBICON FKC Series.There are also features like PA, 94V-0, just to name a few.It is more powerful in many ways due to its Latch Lock, Retention Latches (Non-Wire Side) feature.By Free Hanging, the part is mounted.Compared to other Plug, Female Sockets products, this part has a lot of benefits to offer.

1947065 Features


COMBICON FKC series

1947065 Applications


There are a lot of Phoenix Contact 1947065 Terminal Blocks applications.

  • Electrical substations
  • Variable speed/frequency drivers
  • Automotive Electronics
  • Military Technology
  • Embedded systems
  • LED municipal outdoor and street lighting
  • Measuring & Control Technology
  • Datacom
  • Data Technology
  • Telecommunications
