Name: 1950040000
Brand: Weidmüller
SKU: 1950040000
Price: 2.97000 USD
Availability: InStock

new-10%

1950040000

Manufacturer part number:1950040000

Manufacturer:Weidmüller

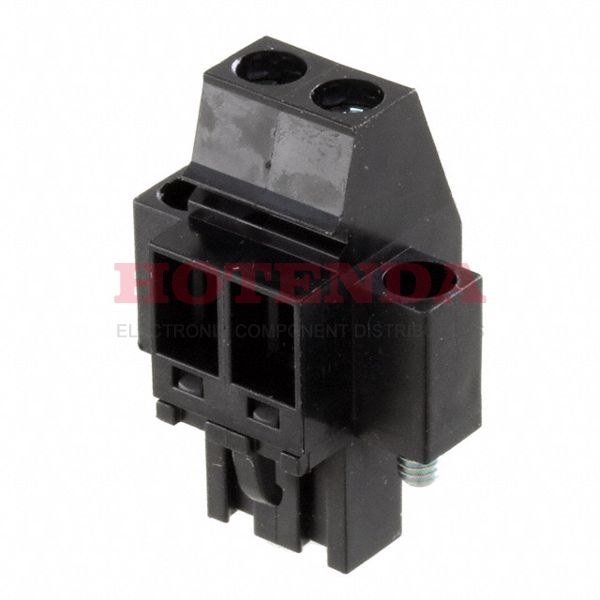

Description:Bulk 0.200 5.08mm Black 1 Levels Free Hanging (In-Line) Plug, Female Sockets Omnimate BL Polybutylene Terephthalate (PBT) Tin Copper Alloy

Case Package:SOT-23

Datasheet:1950040000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Material	Copper Alloy
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polybutylene Terephthalate (PBT)
Operating Temperature	-50°C~100°C
Packaging	Bulk
Series	Omnimate BL
Published	2011
Feature	Mating Flange, Retention Latches (Wire Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Black
Number of Rows	1
Voltage - Rated	300V
Additional Feature	STANDARD: UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	1.071 27.20mm
Current Rating	13A
Termination Style	Screw - Clamping Yoke (Tension Sleeve)
Approval Agency	CSA, UR
Voltage	300V
Number of Levels	1
Current	20A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	400V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Number of Ways	2
Safety Approval	UL; CSA
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-4mm2
Current - IEC	23A
Number of Positions Per Level	2
Screw Size	M2.5
Stripping Length	7mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1950040000 Product Details

1950040000 Overview

This device has a Free Hanging (In-Line) mounting type.An orange Bulk case is used to package the product.Specifically, it is one of the products in the Omnimate BL Series.Other features include STANDARD: UL 94V-0, to name just a few.Several benefits come from the Mating Flange, Retention Latches (Wire Side) feature.There is a mounting hole at Free Hanging.Devices operate at -50°C~100°C operating temperatures.There are many benefits that this part shares with other Plug, Female Sockets products as well.
