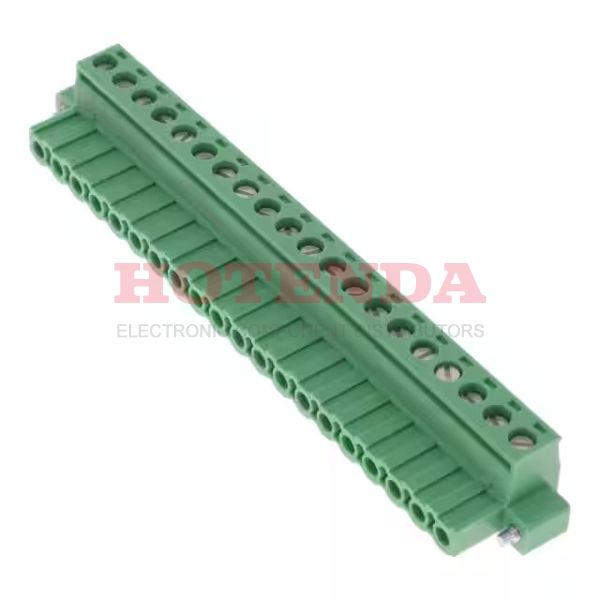

Name: 1949144
Brand: Phoenix Contact
SKU: 1949144
Price: 41.81000 USD
Availability: InStock

new

1949144

Manufacturer part number:1949144

Manufacturer:Phoenix Contact

Description:1949144 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1949144 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	34.120012g
Packaging	Bulk
Published	2011
Series	COMBICON MSTB
Feature	Mating Flange
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Female Sockets
Number of Positions	20
Color	Green
Voltage - Rated	250V
HTS Code	8536.69.40.40
Pitch	0.200 5.08mm
Insulation Height	0.591 15.00mm
Current Rating	12A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Gold
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.5-0.6 Nm (4.4-5.3 Lb-In)
Number of Ways	20
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Number of Positions Per Level	20
Screw Size	M3
Length	96.52mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1949144 Product Details

1949144 Overview

A Screw package is included with it.Its mounting type is Free Hanging (In-Line).Packaged in a Bulk case.It belongs to the COMBICON MSTB Series of products.With its Mating Flange feature, it is more powerful in many ways.It's mounted by Free Hanging, Plug-In.There are a lot of similarities between this part and other Plug, Female Sockets products.
