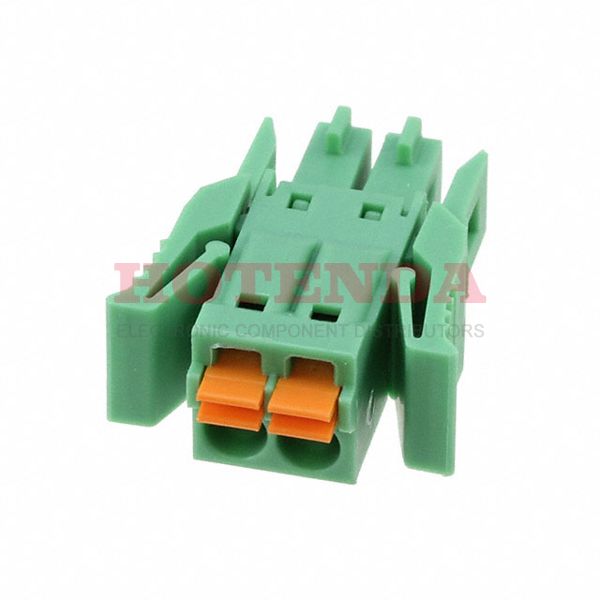

1952021

Phoenix Contact

1952021 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1952021 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingTin
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
Weight 1.770002g
PackagingBulk
Published 2003
Series COMBICON FMC
Feature Latch Lock
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Socket
Type Plug, Female Sockets
Color Green
Number of Rows 1
Voltage - Rated 160V
Additional FeaturePA, UL 94V-0
HTS Code8536.69.40.40
Pitch 0.138 3.50mm
Insulation Height 0.307 7.80mm
Reach Compliance Code unknown
Current Rating8A
Termination Style Screwless - Push-In Spring
Approval Agency CB, VDE, cULus
Voltage 150V
Number of Levels 1
Current 8A
Wire Gauge (Max) 24 AWG
Wire Gauge (Min) 16 AWG
Number of Decks 1
Wire Gauge or Range - AWG 16-24 AWG
Voltage - IEC 320V
Number of Ways 2
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-1.5mm2
Wire Strip Length 10mm
Number of Positions Per Level 2
Fastening Method SPRING LOADED
Height 7.8mm
Length 22.9mm
Width 22.9mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:1334 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$4.47000$4.47
10$4.34800$43.48
50$4.06360$203.18
100$3.73840$373.84
250$3.45400$863.5
500$3.29144$1645.72

1952021 Product Details

1952021 Overview


A Socket packaging is included.Free Hanging (In-Line) indicates that the device is mounted.A Bulk case is used to package the product.The product is a member of the COMBICON FMC Series.Moreover, there are a number of other features, including PA, UL 94V-0, to name just a few.There are a number of advantages to its Latch Lock feature.There's a Free Hanging on the part.Several of the benefits of this part are also shared by other Plug, Female Sockets products.

1952021 Features


COMBICON FMC series

1952021 Applications


There are a lot of Phoenix Contact 1952021 Terminal Blocks applications.

  • Automotive Electronics
  • Refrigeration control
  • Measuring & Control Technology
  • Electrical substations
  • LED municipal outdoor and street lighting
  • Industrial Automation
  • Military Technology
  • Telecommunications
  • Anywhere power is distributed
  • Energy efficient lighting (LED)
