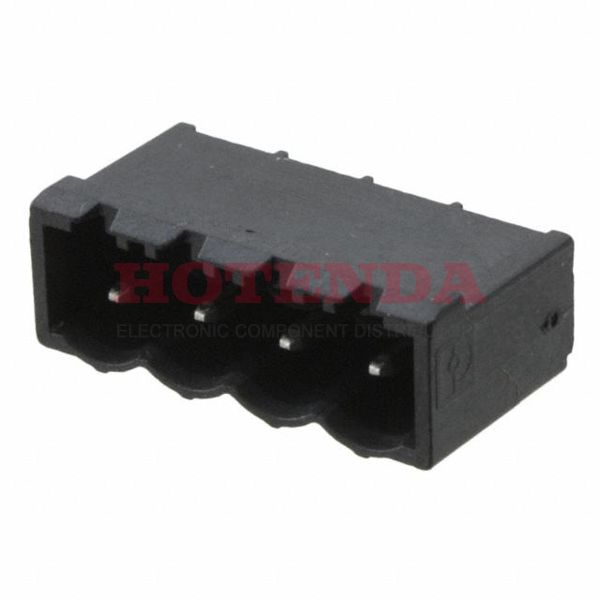

Name: 1954935
Brand: Phoenix Contact
SKU: 1954935
Price: 2.00000 USD
Availability: InStock

new-10%

1954935

Manufacturer part number:1954935

Manufacturer:Phoenix Contact

Description:1954935 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1954935 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Liquid Crystal Polymer (LCP)
Weight	148.999991g
Packaging	Bulk
Published	2010
Series	COMBICON CCA
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Header, Male Pins, Shrouded (4 Side)
Color	Black
Number of Rows	1
Voltage - Rated	250V
Voltage - Rated DC	800mV
Pitch	0.200 5.08mm
Orientation	Right Angle
Depth	12mm
Insulation Height	0.339 8.61mm
Current Rating	12A
Termination Style	Solder
Voltage	300V
Contact Tail Length	0.102 2.60mm
Max Current Rating	12A
Number of Levels	1
Current	10A
Contact Mating Finish	Tin
Number of Decks	1
Voltage - IEC	400V
Number of Ways	4
Safety Approval	UL
Header Orientation	90°, Right Angle
Current - IEC	12A per position
Number of Positions Per Level	4
Fastening Method	CONNECTOR
Length	22.12mm
Width	15.2mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1954935 Product Details

1954935 Overview

Mounting type Through Hole is assigned to the device.To package the product, we use a Bulk case.This product is part of the COMBICON CCA Series.In this case, Through Hole mounts the part.Other Header, Male Pins, Shrouded (4 Side) products share lots of benefits with this part.
