Name: 1967388
Brand: Phoenix Contact
SKU: 1967388
Price: 15.62000 USD
Availability: InStock

new

1967388

Manufacturer part number:1967388

Manufacturer:Phoenix Contact

Description:1967388 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1967388 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2004
Series	COMBICON PC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99

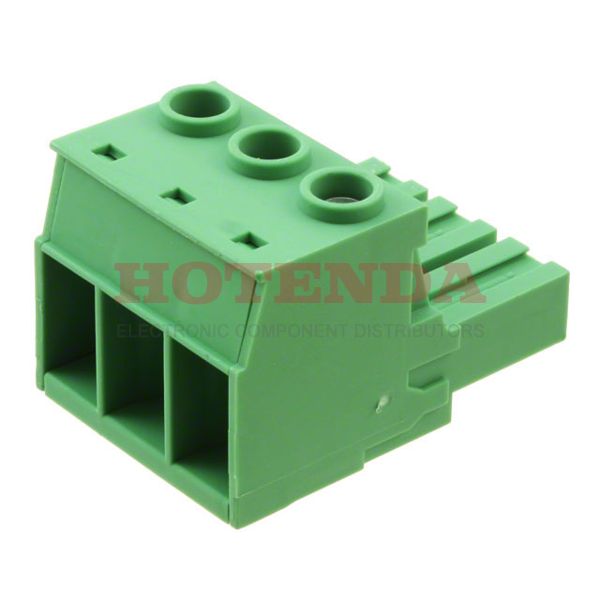

Type	Plug, Female Sockets
Number of Positions	3
Color	Green
Number of Rows	1
Additional Feature	PA, UL 94V-0
Pitch	0.400 10.16mm
Insulation Height	1.094 27.80mm
Reach Compliance Code	unknown
Termination Style	Screw - Rising Cage Clamp
Number of Levels	1
Contact Mating Finish	Silver
Voltage - UL	600V
Number of Decks	1
Wire Gauge or Range - AWG	6-20 AWG
Current - UL	55A
Voltage - IEC	1kV
Torque - Screw	1.7-1.8 Nm (15-15.9 Lb-In)
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.75-16mm2
Wire Strip Length	12mm
Current - IEC	76A
Rated Current	76A
Screw Size	M4
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

1967388 Product Details

1967388 Overview

Free Hanging (In-Line) indicates that the device is mounted.This product is packaged in a case marked Bulk.The product is a member of the COMBICON PC Series.In addition, there are other features such as PA, UL 94V-0, to mention only a few.This part shares lots of benefits with other Plug, Female Sockets products.
