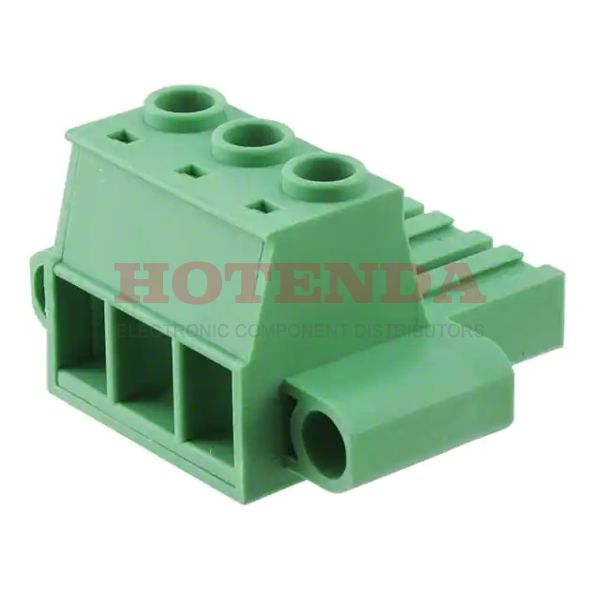

1967469

1967469

1967469

Phoenix Contact

1967469 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1967469 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Contact PlatingSilver
Mount Free Hanging, Panel
Mounting Type Free Hanging (In-Line)
Material Nylon
Housing Material Polyamide (PA), Nylon
Weight 30.230004g
PackagingBulk
Published 2004
Series COMBICON PC
Feature Mating Flange
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screw
ECCN Code EAR99
Connector Type Screw, Socket
Type Plug, Female Sockets
Number of Positions 3
Color Green
Number of Rows 1
Voltage - Rated 1kV
Additional FeaturePA, UL 94V-0
Pitch 0.400 10.16mm
Orientation Right Angle
Insulation Height 1.094 27.80mm
Current Rating76A
Termination Style Screw - Rising Cage Clamp
Number of Contacts 3
Voltage 600V
Max Current Rating 76A
Number of Levels 1
Current 55A
Wire Gauge (Max) 20 AWG
Wire Gauge (Min) 6 AWG
Wire/Cable Gauge 6 AWG
Number of Decks 1
Wire Gauge or Range - AWG 6-20 AWG
Voltage - IEC 1kV
Torque - Screw 1.7-1.8 Nm (15-15.9 Lb-In)
Number of Ways 3
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.75-16mm2
Wire Strip Length 12mm
Screw Size M4
Height 41.5mm
Length 27.8mm
Width 48.24mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
Lead Free Lead Free
In-Stock:517 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$15.645362$15.645362
10$14.759776$147.59776
100$13.924317$1392.4317
500$13.136148$6568.074
1000$12.392593$12392.593

1967469 Product Details

1967469 Overview


This product is packaged in a Screw, Socket carton.This device has a mounting type of Free Hanging (In-Line).We pack the product in a Bulk case.There is a product in the COMBICON PC Series.Additionally, there are features like PA, UL 94V-0, just to name a few.Several benefits come from the Mating Flange feature.There's a Free Hanging, Panel mount on the part.The benefts of this part are similar to those of other Plug, Female Sockets products.

1967469 Features


COMBICON PC series

1967469 Applications


There are a lot of Phoenix Contact 1967469 Terminal Blocks applications.

  • Anywhere power is distributed
  • Measuring & Control Technology
  • LED municipal outdoor and street lighting
  • Military Technology
  • Telecommunications
  • Datacom
  • Data Technology
  • Blowers
  • Medical technology
  • Communication
