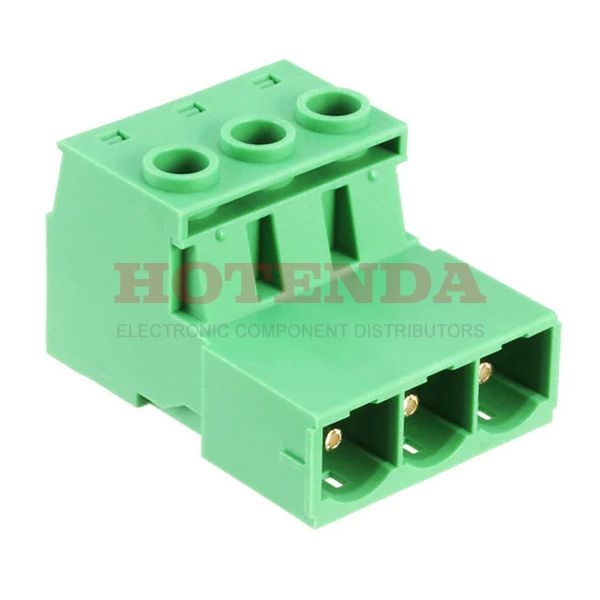

Name: 1969386
Brand: Phoenix Contact
SKU: 1969386
Price: 18.93000 USD
Availability: InStock

new

1969386

Manufacturer part number:1969386

Manufacturer:Phoenix Contact

Description:1969386 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1969386 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	29.51999g
Packaging	Bulk
Published	2010
Series	COMBICON IPC
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Male Pins
Number of Positions	3
Color	Green
Number of Rows	1
Voltage - Rated	1kV
Additional Feature	PA, UL 94V-0
Pitch	0.400 10.16mm
Orientation	Right Angle
Insulation Height	1.094 27.80mm
Current Rating	76A
Termination Style	Screw - Rising Cage Clamp
Voltage	600V
Max Supply Voltage	1kV
Max Current Rating	76A
Number of Levels	1
Current	55A
Wire Gauge (Max)	6 AWG
Wire Gauge (Min)	18 AWG
Contact Mating Finish	Silver
Number of Decks	1
Wire Gauge or Range - AWG	6-20 AWG
Voltage - IEC	1kV
Torque - Screw	1.7-1.8 Nm (15-15.9 Lb-In)
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.75-16mm2
Wire Strip Length	12mm
Screw Size	M4
Length	33.52mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1969386 Product Details

1969386 Overview

This product is packaged in a Screw carton.Mounting type is Free Hanging (In-Line).It is necessary to use a Bulk case for packaging the product.Among the products in the COMBICON IPC Series, it is one of the most popular.To name a few, there is also PA, UL 94V-0.Free Hanging is used to mount the part.There should be no more than 1kV voltage supplied to this chip.Other Plug, Male Pins products benefit from this part as well.
