Name: 1969399
Brand: Phoenix Contact
SKU: 1969399
Price: 25.24000 USD
Availability: InStock

new

1969399

Manufacturer part number:1969399

Manufacturer:Phoenix Contact

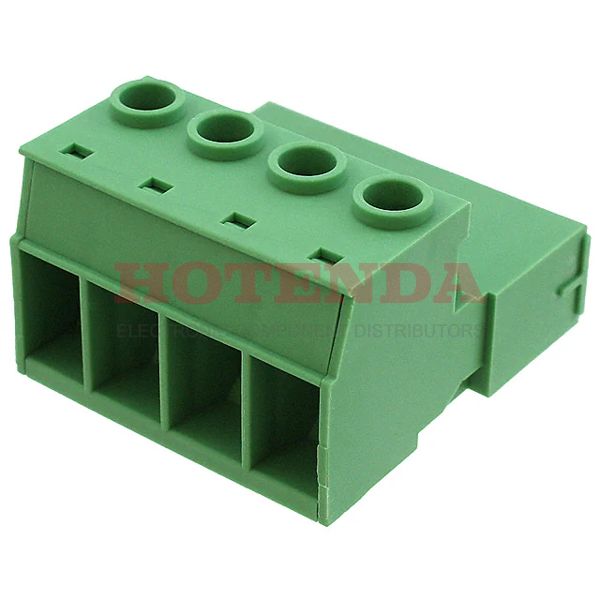

Description:Bulk 0.400 10.16mm Green 1 Levels Free Hanging (In-Line) Plug, Male Pins COMBICON IPC Polyamide (PA), Nylon Silver

Case Package:SOT-23

Datasheet:1969399 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging, Plug-In
Mounting Type	Free Hanging (In-Line)
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	37.530006g
Packaging	Bulk
Series	COMBICON IPC
Published	2011
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Connector Type	Screw
Type	Plug, Male Pins
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	1kV
Pitch	0.400 10.16mm
Orientation	Straight
Depth	27.8mm
Insulation Height	1.094 27.80mm
Reach Compliance Code	unknown
Current Rating	76A
Termination Style	Screw - Rising Cage Clamp
Voltage	600V
Number of Levels	1
Current	55A
Wire Gauge (Max)	6 AWG
Wire Gauge (Min)	18 AWG
Contact Mating Finish	Silver
Number of Decks	1
Wire Gauge or Range - AWG	6-20 AWG
Voltage - IEC	1kV
Torque - Screw	1.7-1.8 Nm (15-15.9 Lb-In)
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.75-16mm2
Wire Strip Length	12mm
Current - IEC	76A
Number of Positions Per Level	4
Screw Size	M4
Length	43.68mm
Width	44.1mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1969399 Product Details

1969399 Overview

Packaging is Screw.Free Hanging (In-Line) is the mounting type.Packaging for the product is carried out via a Bulk case.As a product of the COMBICON IPC Series, it can be found in this category.In this case, Free Hanging, Plug-In mounts the part.There are a lot of similarities between this part and other Plug, Male Pins products.
