1970579

1970579

1970579

Phoenix Contact

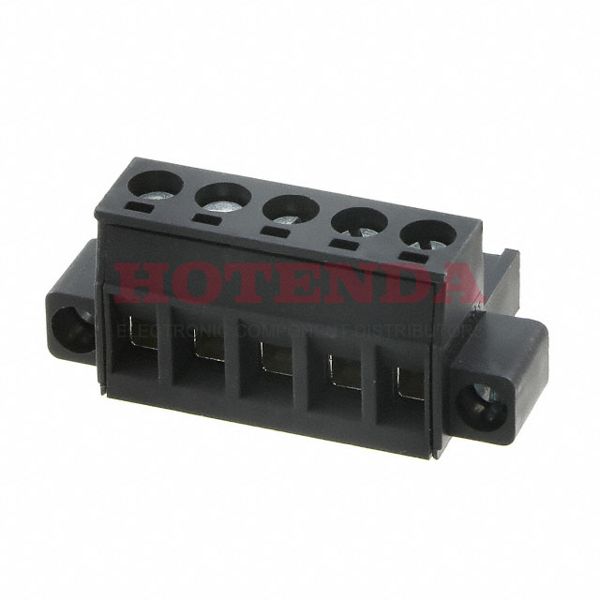

1970579 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1970579 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 6 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
PackagingBulk
Published 2011
Series COMBICON MSTB
Feature Mating Flange
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Connector Type Screw
Type Plug, Female Sockets
Number of Positions 5
Color Black
Voltage - Rated 250V
Pitch 0.200 5.08mm
Insulation Height 0.591 15.00mm
Reach Compliance Code not_compliant
Current Rating12A
Termination Style Screw - Rising Cage Clamp
Voltage 300V
Number of Levels 1
Current 15A
Wire Gauge (Max) 30 AWG
Wire Gauge (Min) 12 AWG
Contact Mating Finish Tin
Wire Gauge or Range - AWG 12-30 AWG
Torque - Screw 0.5-0.6 Nm (4.4-5.3 Lb-In)
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.2-2.5mm2
Wire Strip Length 7mm
Screw Size M3
RoHS StatusRoHS Compliant
In-Stock:1356 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$5.95000$5.95
10$5.78600$57.86
50$5.40760$270.38
100$4.97490$497.49
250$4.59640$1149.1
500$4.38008$2190.04

1970579 Product Details

1970579 Overview


Screw packaging is included.Free Hanging (In-Line) is the type of mounting for the device.Packaging is performed using a Bulk case.Among the products in the COMBICON MSTB Series, it is one of the most popular.With its Mating Flange feature, it is more powerful in many ways.Free Hanging mounts the part.There are a number of benefits that this part has in common with other Plug, Female Sockets products.

1970579 Features


COMBICON MSTB series

1970579 Applications


There are a lot of Phoenix Contact 1970579 Terminal Blocks applications.

  • Communication
  • Control panels
  • Automotive Electronics
  • LED municipal outdoor and street lighting
  • Measuring & Control Technology
  • Telecommunications
  • Refrigeration control
  • Electrical substations
  • Embedded systems
  • Transportation
