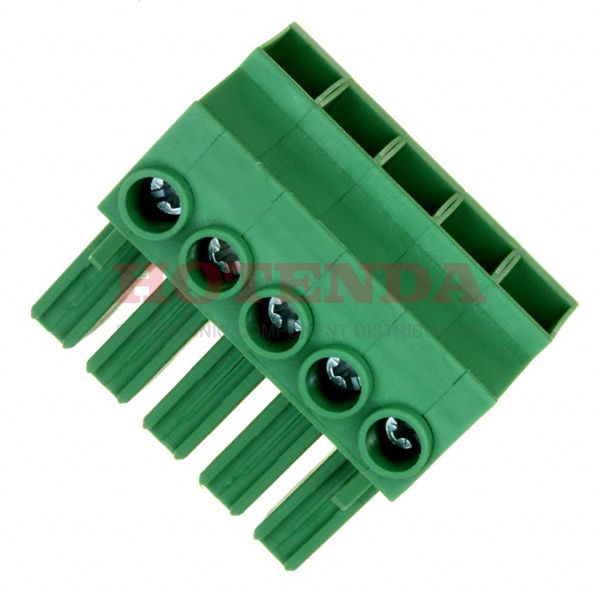

Name: 1975613
Brand: Phoenix Contact
SKU: 1975613
Availability: InStock

new-10%

1975613

Manufacturer part number:1975613

Manufacturer:Phoenix Contact

Description:1975613 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1975613 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	1.050066kg
Packaging	Bulk
Published	2006
Series	COMBICON PC
Feature	Retention Latches (Non-Wire Side)
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Green
Number of Rows	1
Voltage - Rated	1kV
Additional Feature	PA, UL 94V-0
Pitch	0.300 7.62mm
Orientation	Right Angle
Insulation Height	0.902 22.90mm
Reach Compliance Code	unknown
Current Rating	41A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	5
Voltage	600V
Max Current Rating	41A
Number of Levels	1
Current	41A
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	8 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	8-24 AWG
Voltage - IEC	1kV
Torque - Screw	0.7-0.8 Nm (6.2-7.1 Lb-In)
Number of Ways	5
Safety Approval	UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-10mm2
Wire Strip Length	10mm
Screw Size	M3
Height	22.9mm
Length	38.1mm
Width	36.5mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1975613 Product Details

1975613 Overview

Free Hanging (In-Line) is the mounting type for the device.We pack the product in a Bulk case.This product is from the COMBICON PC Series.Other features include PA, UL 94V-0, to name just a few.In many ways, it is more powerful due to its Retention Latches (Non-Wire Side) feature.It's mounted by Cable, Free Hanging.Other Plug, Female Sockets products benefit from this part as well.
