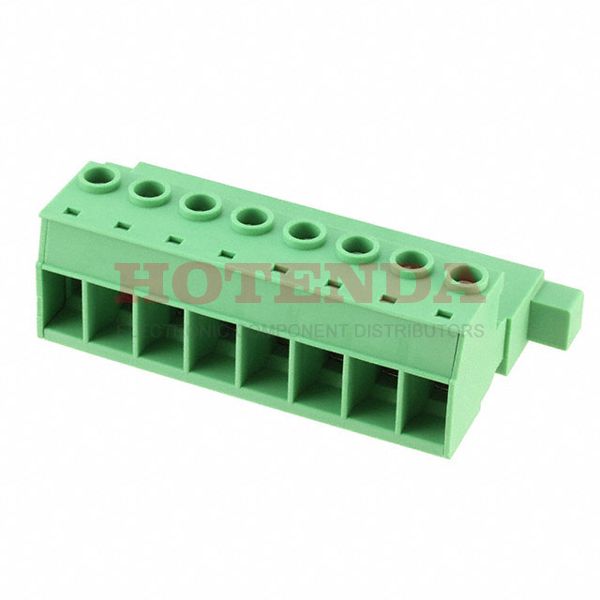

Phoenix Contact

1975875 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

1975875 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 7 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Material Polyamide, Silver
Housing Material Polyamide (PA), Nylon
Weight 149.999992g
PackagingBulk
Published 2010
Series COMBICON IPC
Feature Mating Flange
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN Code EAR99
Connector Type Screw
Type Plug, Male Pins
Color Green
Number of Rows 1
Gender Female
Voltage - Rated 1kV
Additional FeaturePA, UL 94V-0
Pitch 0.400 10.16mm
Insulation Height 1.094 27.80mm
Current Rating76A
Termination Style Screw - Rising Cage Clamp
Voltage 600V
Number of Levels 1
Current 55A
Wire Gauge (Max) 6 AWG
Wire Gauge (Min) 18 AWG
Contact Mating Finish Silver
Voltage - UL 600V
Number of Decks 1
Wire Gauge or Range - AWG 6-20 AWG
Torque - Screw 1.7-1.8 Nm (15-15.9 Lb-In)
Number of Ways 8
Safety Approval UL
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.75-16mm2
Wire Strip Length 12mm
Current - IEC 76A
Number of Positions Per Level 8
Screw Size M4
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
Flammability Rating UL94 V-0
In-Stock:215 items

Pricing & Ordering

QuantityUnit PriceExt. Price
50$47.33000$2366.5

1975875 Product Details

1975875 Overview


The packaging is Screw.Free Hanging (In-Line) is the mounting type.The product is packaged in a Bulk case.This product is part of the COMBICON IPC Series.Furthermore, there are other features such as PA, UL 94V-0, to name a few.It is more powerful in many ways due to its Mating Flange feature.There is a Free Hanging mount on the part.As with other Plug, Male Pins products, this part also offers a wide range of benefits.

1975875 Features


COMBICON IPC series

1975875 Applications


There are a lot of Phoenix Contact 1975875 Terminal Blocks applications.

  • Medical technology
  • Data Technology
  • LED municipal outdoor and street lighting
  • Telecommunications
  • Variable speed/frequency drivers
  • Measuring & Control Technology
  • Industrial Automation
  • Military Technology
  • Electrical substations
  • Communication
