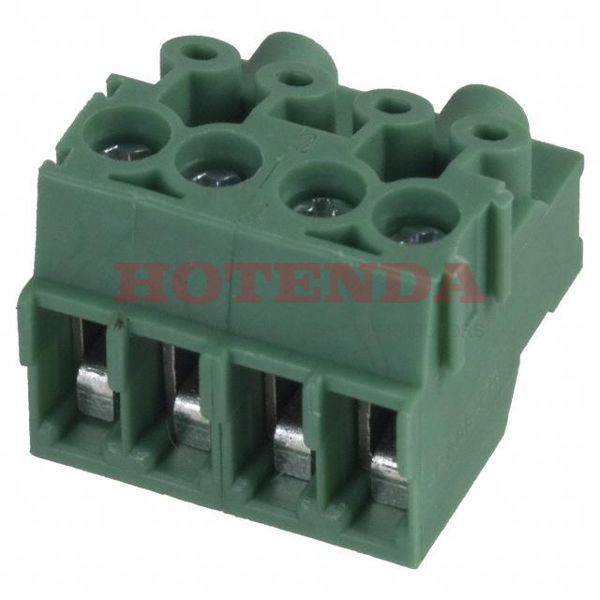

Name: 1984031
Brand: Phoenix Contact
SKU: 1984031
Price: 1.12000 USD
Availability: InStock

new-10%

1984031

Manufacturer part number:1984031

Manufacturer:Phoenix Contact

Description:1984031 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1984031 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Material	Copper
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	2.829991g
Packaging	Bulk
Published	2003
Series	COMBICON PT
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug for Unshrouded Header
Color	Green
Number of Rows	1
Voltage - Rated	160V
Pitch	0.138 3.50mm
Orientation	Right Angle/Straight
Depth	14.6mm
Insulation Height	0.437 11.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Approval Agency	UL
Number of Contacts	4
Voltage	300V
Max Supply Voltage	160V
Max Current Rating	8A
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	16 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-26 AWG
Voltage - IEC	400V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	4
Safety Approval	UL
Plug Wire Entry	90° and 180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Screw Size	M2
Stripping Length	5mm
Height	11mm
Length	14mm
Width	14.6mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1984031 Product Details

1984031 Overview

The product is packaged in Screw, Socket.Free Hanging (In-Line) is the mounting type of the device.The product is packaged in a Bulk case.As a product of the COMBICON PT Series, it can be found in this category.Cable, Free Hanging is mounting the part.There should be no more than 160V voltage supplied to this chip.There are a lot of similarities between this part and other Plug for Unshrouded Header products.
