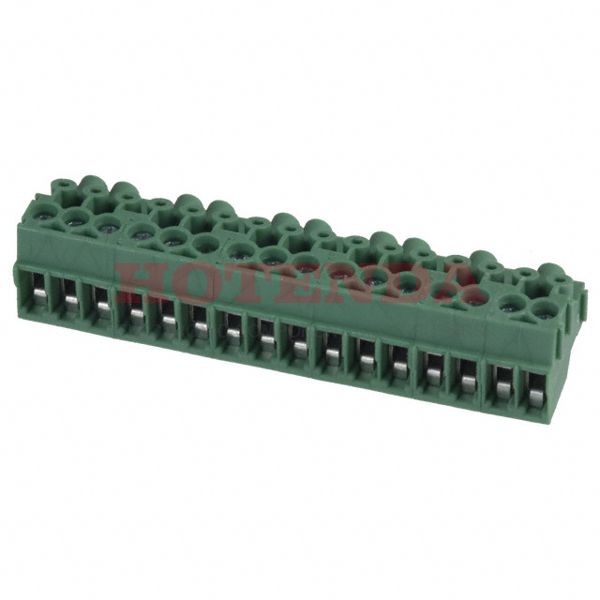

Name: 1984154
Brand: Phoenix Contact
SKU: 1984154
Price: 4.03000 USD
Availability: InStock

new-10%

1984154

Manufacturer part number:1984154

Manufacturer:Phoenix Contact

Description:1984154 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1984154 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Contact Plating	Tin
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	10.699989g
Packaging	Bulk
Published	2005
Series	COMBICON PT
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug for Unshrouded Header
Number of Positions	16
Color	Green
Number of Rows	1
Voltage - Rated	160V
Additional Feature	PA, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Orientation	Right Angle/Straight
Insulation Height	0.437 11.10mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Number of Contacts	16
Voltage	300V
Max Current Rating	8A
Number of Levels	1
Current	10A
Wire Gauge (Max)	14 AWG
Wire Gauge (Min)	26 AWG
Wire/Cable Gauge	16 AWG
Number of Decks	1
Wire Gauge or Range - AWG	16-26 AWG
Voltage - IEC	400V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	16
Safety Approval	UL
Plug Wire Entry	90° and 180°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	5mm
Screw Size	M2
Height	11mm
Length	14.6mm
Width	56mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1984154 Product Details

1984154 Overview

The packaging contains Screw, Socket.Free Hanging (In-Line) is the mounting type for the device.We package the product with a Bulk case.The product is a part of the COMBICON PT Series.Also, there's PA, UL 94V-0, to name a few.Cable, Free Hanging is mounting the part.In addition to its benefits, this part also shares many with the other products in the Plug for Unshrouded Header series.
