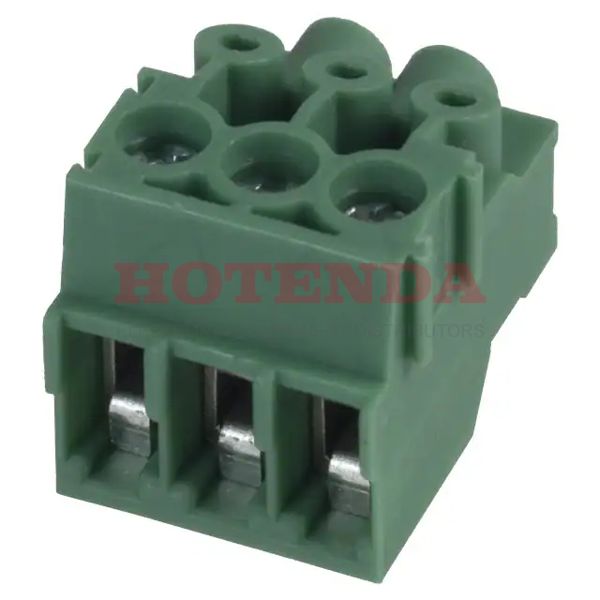

Name: 1984329
Brand: Phoenix Contact
SKU: 1984329
Price: 0.98000 USD
Availability: InStock

new-10%

1984329

Manufacturer part number:1984329

Manufacturer:Phoenix Contact

Description:1984329 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1984329 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Material	Copper
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	1.909992g
Packaging	Bulk
Published	2005
Series	COMBICON PT
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug for Unshrouded Header
Number of Positions	3
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	160V
Additional Feature	PA, UL 94V-0
Pitch	0.138 3.50mm
Depth	12.9mm
Insulation Height	0.437 11.10mm
Reach Compliance Code	unknown
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Max Supply Voltage	300V
Max Current Rating	10A
Number of Levels	1
Current	10A
Wire Gauge (Max)	14 AWG
Wire Gauge (Min)	26 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-26 AWG
Voltage - IEC	400V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	3
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	5mm
Current - IEC	8A
Number of Positions Per Level	3
Screw Size	M2
Height	11mm
Length	12.9mm
Width	12.9mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1984329 Product Details

1984329 Overview

The product comes in a package of Screw, Socket.There is a Free Hanging (In-Line) mounting type for the device.We package the product with a Bulk case.It is part of the COMBICON PT Series of products.Furthermore, there are other features such as PA, UL 94V-0, to name a few.Free Hanging is used to mount the part.This chip should not be supplied with voltage greater than 300V volts.Other Plug for Unshrouded Header products share lots of benefits with this part.
