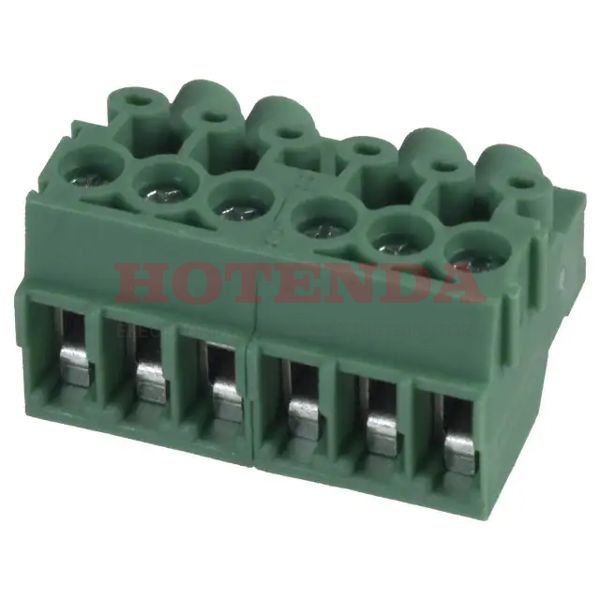

Name: 1984358
Brand: Phoenix Contact
SKU: 1984358
Price: 1.82000 USD
Availability: InStock

new-10%

1984358

Manufacturer part number:1984358

Manufacturer:Phoenix Contact

Description:1984358 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:1984358 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	5 Weeks
Contact Material	Copper
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Material	Polyamide, Tin
Housing Material	Polyamide (PA), Nylon
Weight	4.129987g
Packaging	Bulk
Published	2005
Series	COMBICON PT
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Connector Type	Screw, Socket
Type	Plug for Unshrouded Header
Color	Green
Number of Rows	1
Gender	Female
Voltage - Rated	160V
Additional Feature	PA, UL 94V-0
Pitch	0.138 3.50mm
Orientation	Straight
Depth	12.9mm
Insulation Height	0.437 11.10mm
Current Rating	8A
Termination Style	Screw - Rising Cage Clamp
Voltage	300V
Max Supply Voltage	200V
Max Current Rating	8A
Number of Levels	1
Current	10A
Wire Gauge (Max)	14 AWG
Wire Gauge (Min)	26 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	16-26 AWG
Voltage - IEC	400V
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	6
Safety Approval	UL
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.2-1.5mm2
Wire Strip Length	5mm
Number of Positions Per Level	6
Screw Size	M2
Height	11mm
Length	12.9mm
Width	21mm
Material Flammability Rating	UL94 V-0
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1984358 Product Details

1984358 Overview

The product comes in a package of Screw, Socket.Free Hanging (In-Line) is the mounting type for the device.In order to package the product, a Bulk case is used.There is a product in the COMBICON PT Series.Then there's PA, UL 94V-0, for example.This part is mounted by Free Hanging. It is recommended that the supply voltage of this chip not exceed 200V.As with other Plug for Unshrouded Header products, this part also offers a wide range of benefits.
