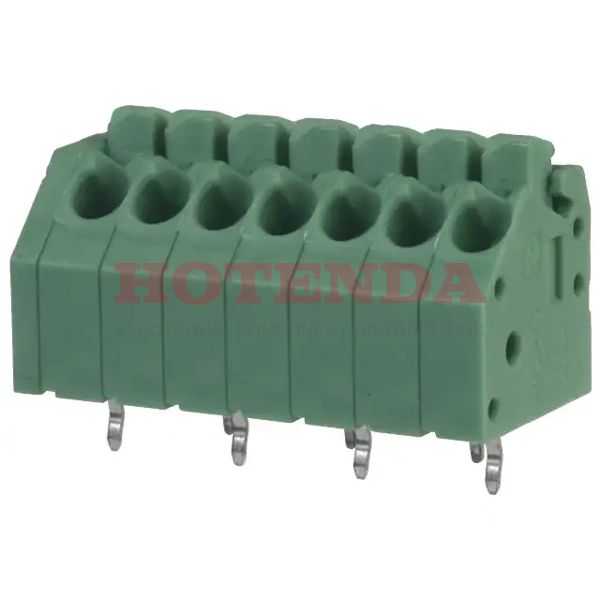

Name: 1985247
Brand: Phoenix Contact
SKU: 1985247
Price: 1.18000 USD
Availability: InStock

new-10%

1985247

Manufacturer part number:1985247

Manufacturer:Phoenix Contact

Description:0.138 3.50mm Green Bulk Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Screwless - Spring Cage, Tension Clamp 1 Levels 16-24 AWG COMBICON PTSA

Case Package:SOT-23

Datasheet:1985247 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Insulation Material	Nylon
Housing Material	Polyamide (PA), Nylon
Weight	3.439988g
Packaging	Bulk
Series	COMBICON PTSA
Published	2005
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, 94V-0
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Depth	12mm
Reach Compliance Code	unknown
Current Rating	2A
Approval Agency	UL, VDE
Number of Contacts	7
Wire Gauge	16-24 AWG
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	2A
Number of Levels	1
Wire Gauge (Max)	24 AWG
Wire Gauge (Min)	26 AWG
Wire/Cable Gauge	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Number of Ways	7
Safety Approval	UL
Mating Orientation	45° (135°) Angle with Board
Wire Termination	Screwless - Spring Cage, Tension Clamp
Stripping Length	8mm
Fastening Method	SPRING LOADED
Height	13.1mm
Length	12mm
Width	21mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1985247 Product Details

1985247 Overview

There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the COMBICON PTSA Series.Moreover, there are a number of other features, including PA, 94V-0, to name just a few.Through Hole is used to mount the part.It is recommended that the supply voltage of this chip not exceed 250V.
