Name: 1912320000
Brand: Weidmüller
SKU: 1912320000
Price: 0.47000 USD
Availability: InStock

new-10%

1912320000

Manufacturer part number:1912320000

Manufacturer:Weidmüller

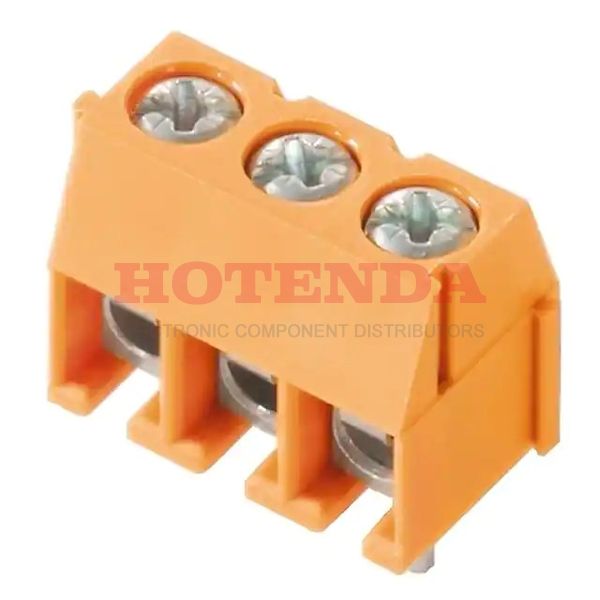

Description:0.138 3.50mm Orange Bulk Thermoplastic, Wemid Through Hole Horizontal with Board Screw - Leaf Spring, Wire Guard 1 Levels 16-28 AWG Omnimate PS

Case Package:SOT-23

Datasheet:1912320000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Thermoplastic, Wemid
Contact Material - Plating	Copper Alloy - Tin Plated
Operating Temperature	-50°C~120°C
Packaging	Bulk
Series	Omnimate PS
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screw
ECCN Code	EAR99
Color	Orange
Number of Rows	1
Voltage - Rated	300V
Additional Feature	STANDARD: UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Current Rating	10A
Approval Agency	CSA, cURus
Wire Gauge	16-28 AWG
Number of Levels	1
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	16 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.2-0.25 Nm (1.7-2.2 Lb-In)
Positions Per Level	2
Number of Ways	2
Safety Approval	UL; CSA
Mating Orientation	Horizontal with Board
Wire Termination	Screw - Leaf Spring, Wire Guard
Screw Thread	M2.5
Hole Diameter	1.3 mm
Number of Positions Per Level	2
Stripping Length	4mm
Fastening Method	SOLDER
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

1912320000 Product Details

1912320000 Overview

Through Hole is the mounting type for the device.The product is packaged in a Bulk case.It's part of the Omnimate PS Series.In addition, there are other features, such as STANDARD: UL 94V-0, to mention just a few.Many aspects of its Interlocking (Side) feature increase its effectiveness.Mounting of the part is based on Through Hole.It runs at -50°C~120°C Operating Temperature.
