Name: 1988846
Brand: Phoenix Contact
SKU: 1988846
Price: 1.38000 USD
Availability: InStock

new-10%

1988846

Manufacturer part number:1988846

Manufacturer:Phoenix Contact

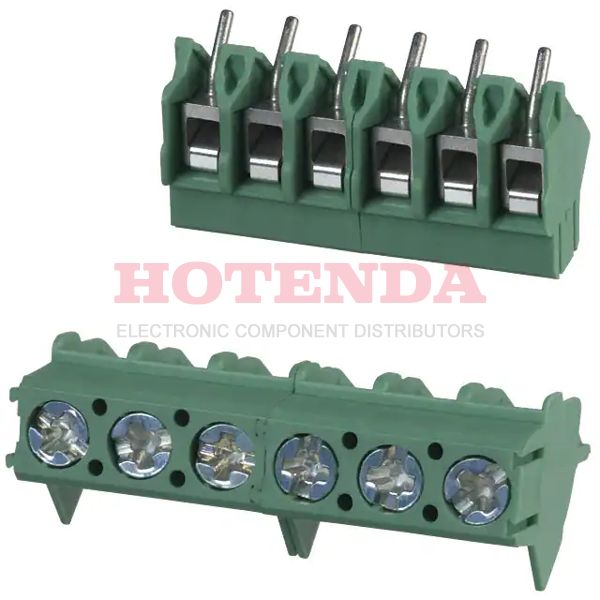

Description:0.197 5.00mm Green Bulk Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Screw 1 Levels 12-26 AWG COMBICON PTA

Case Package:SOT-23

Datasheet:1988846 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Material	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA), Nylon
Weight	6.110003g
Packaging	Bulk
Series	COMBICON PTA
Published	2011
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Color	Green
Number of Rows	1
Voltage - Rated	250V
Additional Feature	PA, UL 94V-0
Pitch	0.197 5.00mm
Depth	12.8mm
Current Rating	24A
Approval Agency	CB, UL, VDE
Number of Contacts	6
Wire Gauge	12-26 AWG
Voltage	300V
Max Supply Voltage	250V
Max Current Rating	24A
Number of Levels	1
Current	15A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.35-0.4 Nm (3.1-3.5 Lb-In)
Number of Ways	6
Safety Approval	UL
Mating Orientation	45° (135°) Angle with Board
Wire Termination	Screw
Screw Thread	M2.6
Wire Cross Section	2.5 mm2
Height	15.4mm
Length	30mm
Width	30mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1988846 Product Details

1988846 Overview

This device is mounted in the Through Hole position.It has been determined that a Bulk case is necessary to package the product.There is a product in the COMBICON PTA Series.To name a few, there is also PA, UL 94V-0.There are a number of advantages to its Interlocking (Side) feature.Part Through Hole is mounted to the part.It is recommended that this chip's supply voltage does not exceed 250V.
