Name: 1989036
Brand: Phoenix Contact
SKU: 1989036
Price: 2.55000 USD
Availability: InStock

new-10%

1989036

Manufacturer part number:1989036

Manufacturer:Phoenix Contact

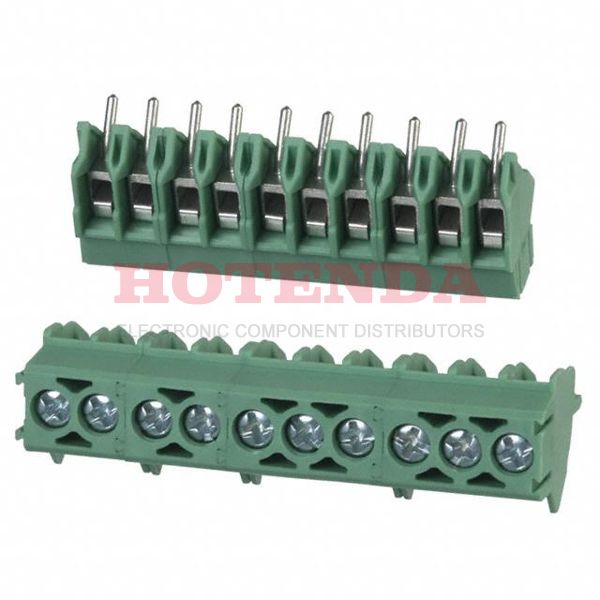

Description:0.138 3.50mm Green Bulk Polyamide (PA), Nylon Through Hole 45° (135°) Angle with Board Screw 1 Levels 16-26 AWG COMBICON PTA

Case Package:SOT-23

Datasheet:1989036 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Material	Polyamide
Housing Material	Polyamide (PA), Nylon
Weight	4.850008g
Packaging	Bulk
Series	COMBICON PTA
Published	2005
Feature	Interlocking (Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Color	Green
Number of Rows	1
Gender	Male
Voltage - Rated	160V
Additional Feature	PA, UL 94V-0
HTS Code	8536.69.40.40
Pitch	0.138 3.50mm
Orientation	Straight
Depth	9.9mm
Reach Compliance Code	unknown
Current Rating	17.5A
Approval Agency	UL, cULus
Wire Gauge	16-26 AWG
Voltage	300V
Number of Levels	1
Current	10A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	16 AWG
Number of Poles	10
Number of Decks	1
Terminal and Terminal Block Type	BARRIER STRIP TERMINAL BLOCK
Torque - Screw	0.22-0.25 Nm (1.9-2.2 Lb-In)
Number of Ways	10
Safety Approval	UL
Mating Orientation	45° (135°) Angle with Board
Wire Termination	Screw
Screw Thread	M2
Length	35mm
Width	11.2mm
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0
Lead Free	Lead Free

1989036 Product Details

1989036 Overview

There is a mounting type of Through Hole for this device.It is necessary to use a Bulk case for packaging the product.This product is part of the COMBICON PTA Series.Moreover, there are a number of other features, including PA, UL 94V-0, to name just a few.In many ways, its Interlocking (Side) feature makes it more powerful.Through Hole is used to mount the part.
