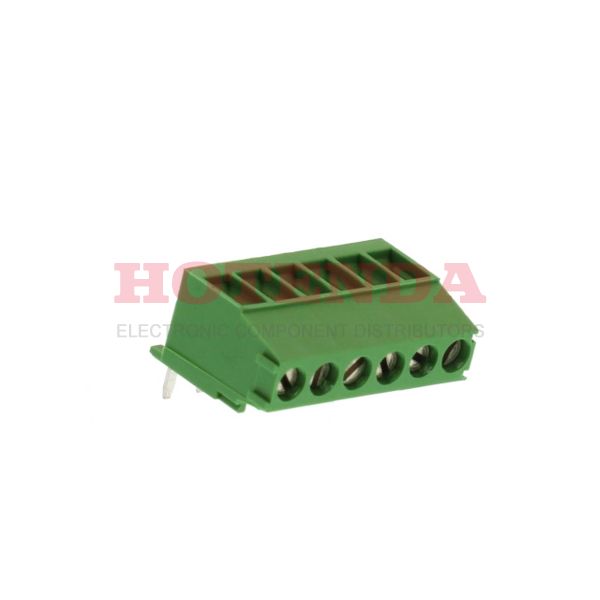

Name: 284414-6
Brand: TE Connectivity AMP Connectors
SKU: 284414-6
Price: 4.65000 USD
Availability: InStock

new-10%

284414-6

Manufacturer part number:284414-6

Manufacturer:TE Connectivity AMP Connectors

Description:0.138 3.50mm Green Tray Polyamide (PA66), Nylon 6/6 Through Hole Vertical with Board Screw - Rising Cage Clamp 1 Levels 12-30 AWG Buchanan

Case Package:SOT-23

Datasheet:284414-6 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	ACTIVE (Last Updated: 1 week ago)
Factory Lead Time	12 Weeks
Contact Material	Brass
Contact Plating	Tin
Mount	Through Hole
Mounting Type	Through Hole
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Brass - Tin Plated
Clamp Material - Plating	Brass - Nickel Plated
Screw Material - Plating	Brass - Nickel Plated
Packaging	Tray
Series	Buchanan
Published	2002
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Color	Green
Number of Rows	1
Voltage - Rated	300V
Pitch	0.138 3.50mm
Orientation	Right Angle
Current Rating	12A
Shrouding	Yes
Number of Contacts	6
Wire Gauge	12-30 AWG
ELV	Compliant
Max Voltage Rating (AC)	300V
Max Current Rating	12A
Number of Levels	1
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	30 AWG
Number of Decks	1
Terminal and Terminal Block Type	MODULAR TERMINAL BLOCK
Torque - Screw	0.25 Nm (2.2 Lb-In)
Number of Ways	6
Safety Approval	UL
Thread Size	M2
Mating Orientation	Vertical with Board
Wire Termination	Screw - Rising Cage Clamp
Screw Thread	M3
Max Supply Voltage (AC)	300V
Length	21mm
Length - Tail	3.5mm
Radiation Hardening	No
RoHS Status	RoHS Compliant
Flammability Rating	UL94 V-0

284414-6 Product Details

284414-6 Overview

Packaging is Receptacle.Through Hole is the mounting type.Packaging for the product is carried out via a Tray case.As a product of the Buchanan Series, it can be found in this category.Temperatures below 105°C are best for using it.There's a minimum temperature of -40°C for this device.With its Interlocking (Side) feature, it is more powerful in many ways.In this case, Through Hole mounts the part.
