Name: 3042269
Brand: Phoenix Contact
SKU: 3042269
Price: 5.37000 USD
Availability: InStock

new-10%

3042269

Manufacturer part number:3042269

Manufacturer:Phoenix Contact

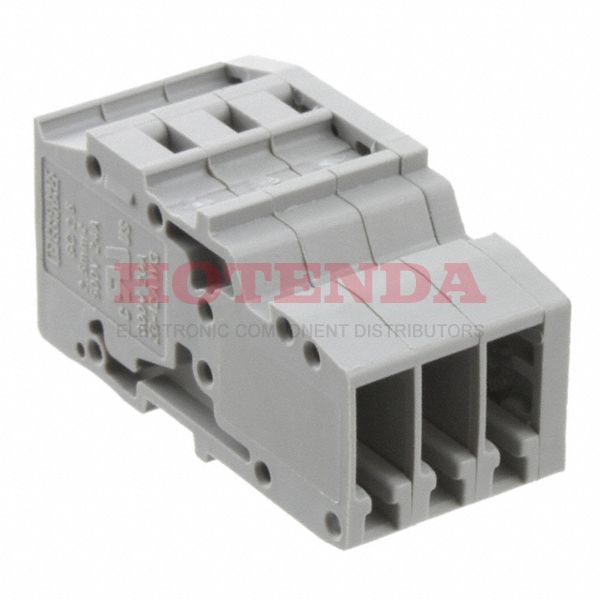

Description:Bulk Gray 1 Levels Free Hanging (In-Line) Receptacle, Male Pins CLIPLINE COMBI SC Polyamide (PA), Nylon

Case Package:SOT-23

Datasheet:3042269 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	9.410001g
Packaging	Bulk
Series	CLIPLINE COMBI SC
Published	2011
Feature	Coupling
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Screwless
ECCN Code	EAR99
Type	Receptacle, Male Pins
Number of Positions	3
Color	Gray
Voltage - Rated	500V
Insulation Height	0.740 18.80mm
Current Rating	24A
Termination Style	Screwless - Spring Cage, Tension Clamp
Voltage	300V
Number of Levels	1
Current	20A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	12 AWG
Wire Gauge or Range - AWG	12-26 AWG
Voltage - IEC	500V
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.08-4mm2
Wire Strip Length	10mm
Current - IEC	24A
Height	18.8mm
Length	37.2mm
Width	15.6mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

3042269 Product Details

3042269 Overview

The device's mounting type is Free Hanging (In-Line).In order to package the product, a Bulk case is used.It belongs to the CLIPLINE COMBI SC Series of products.Its Coupling feature renders it more powerful in many ways.The part is mounted by Free Hanging.This part shares lots of benefits with other Receptacle, Male Pins products.
