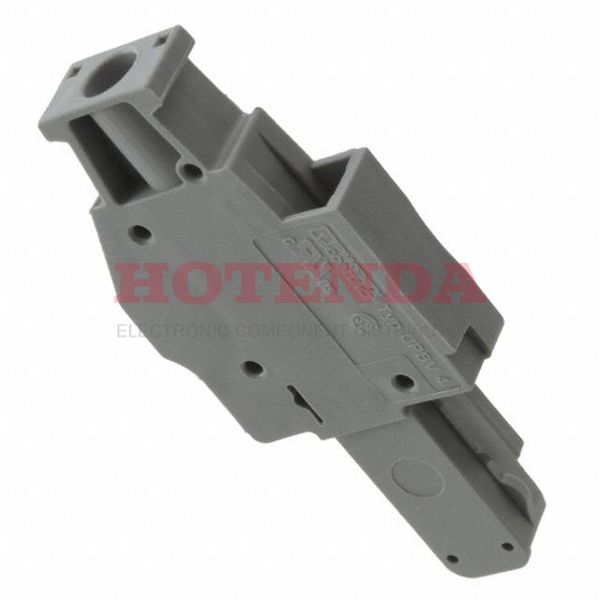

Name: 3045716
Brand: Phoenix Contact
SKU: 3045716
Price: 2.19000 USD
Availability: InStock

new-10%

3045716

Manufacturer part number:3045716

Manufacturer:Phoenix Contact

Description:3045716 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:3045716 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Mount	Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Weight	6.390011g
Packaging	Bulk
Published	2010
Series	CLIPLINE COMBI UPBV
Feature	Interlocking (Side)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Gray
Voltage - Rated	800V
HTS Code	8536.69.40.40
Pitch	6.2mm
Insulation Height	1.909 48.50mm
Reach Compliance Code	not_compliant
Current Rating	32A
Termination Style	Screw
Approval Agency	CSA, UL
Voltage	600V
Number of Levels	1
Current	30A
Wire Gauge (Max)	26 AWG
Wire Gauge (Min)	10 AWG
Wire Gauge or Range - AWG	10-26 AWG
Voltage - IEC	800V
Torque - Screw	0.6-0.8 Nm (5.3-7.1 Lb-In)
Plug Wire Entry	90°
Wire Gauge or Range - mm²	0.14-6mm2
Current - IEC	32A
Screw Size	M3
Stripping Length	9mm
Height	32.2mm
Length	21mm
Width	6.2mm
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

3045716 Product Details

3045716 Overview

This device's mounting type is Free Hanging (In-Line).We package the product with a Bulk case.It's part of the CLIPLINE COMBI UPBV Series.A number of aspects of its Interlocking (Side) feature make it more powerful.By Free Hanging, the part is mounted.The benefts of this part are similar to those of other Plug, Female Sockets products.
