3212536

3212536

3212536

Phoenix Contact

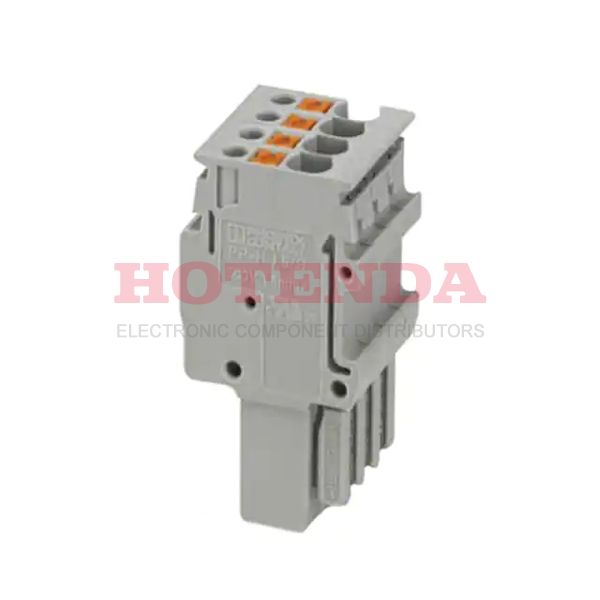

3212536 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

SOT-23

3212536 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 4 Weeks
Mount Free Hanging
Mounting Type Free Hanging (In-Line)
Housing Material Polyamide (PA), Nylon
PackagingBulk
Published 2012
Series CLIPLINE COMBI PP-H
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Screwless
ECCN Code EAR99
Connector Type Push-In
Type Plug, Female Sockets
Number of Positions 4
Color Gray
Voltage - Rated 500V
Pitch 1.5mm
Insulation Height 1.232 31.30mm
Current Rating17.5A
Termination Style Screwless - Push-In Spring
Voltage 600V
Number of Levels 1
Current 5A
Wire Gauge (Max) 26 AWG
Wire Gauge (Min) 26 AWG
Wire Gauge or Range - AWG 14-26 AWG
Voltage - IEC 500V
Plug Wire Entry 180°
Wire Gauge or Range - mm² 0.14-1.5mm2
Wire Strip Length 10mm
Current - IEC 17.5A
Width 3.5mm
Material Flammability Rating UL94 V-0
RoHS StatusRoHS Compliant
In-Stock:1110 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$5.47000$5.47
10$5.32300$53.23
50$4.97500$248.75
100$4.57690$457.69
250$4.22868$1057.17
500$4.02968$2014.84

3212536 Product Details

3212536 Overview


The product comes in a package of Push-In.Mounting type Free Hanging (In-Line) is assigned to the device.We use a Bulk case to package the product.It belongs to the CLIPLINE COMBI PP-H Series of products.You've got Free Hanging mounted on the part.Other Plug, Female Sockets products benefit from this part as well.

3212536 Features


CLIPLINE COMBI PP-H series

3212536 Applications


There are a lot of Phoenix Contact 3212536 Terminal Blocks applications.

  • Transportation
  • Anywhere power is distributed
  • Military Technology
  • Medical technology
  • Control panels
  • Automotive Electronics
  • Blowers
  • Datacom
  • Industrial Automation
  • Variable speed/frequency drivers
