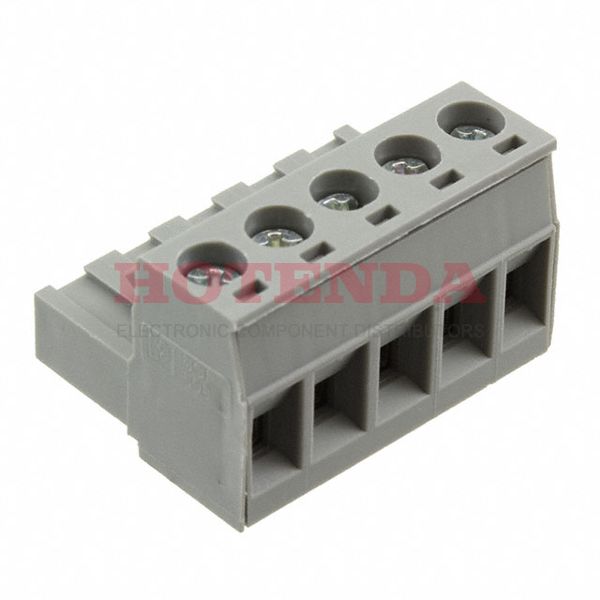

Name: 5435750
Brand: Phoenix Contact
SKU: 5435750
Price: 5.62000 USD
Availability: InStock

new-10%

5435750

Manufacturer part number:5435750

Manufacturer:Phoenix Contact

Description:5435750 datasheet pdf and Terminal Blocks - Headers, Plugs and Sockets product details from Phoenix Contact stock available on our website

Case Package:SOT-23

Datasheet:5435750 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	9 Weeks
Mount	Cable, Free Hanging
Mounting Type	Free Hanging (In-Line)
Housing Material	Polyamide (PA), Nylon
Packaging	Bulk
Published	2013
Series	BCP
Feature	Retention Latches (Non-Wire Side)
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN Code	EAR99
Type	Plug, Female Sockets
Color	Gray
Number of Rows	1
Pitch	0.200 5.08mm
Orientation	Right Angle
Insulation Height	0.591 15.00mm
Termination Style	Screw
Number of Contacts	5
Voltage	300V
Max Current Rating	12A
Number of Levels	1
Current	15A
Wire Gauge (Max)	30 AWG
Wire Gauge (Min)	12 AWG
Contact Mating Finish	Tin
Number of Decks	1
Wire Gauge or Range - AWG	12-30 AWG
Voltage - IEC	630V
Torque - Screw	0.4-0.5 Nm (3.5-4.4 Lb-In)
Number of Ways	5
Safety Approval	CUL; UL
Plug Wire Entry	180°
Wire Gauge or Range - mm²	0.2-2.5mm2
Wire Strip Length	7mm
Current - IEC	12A
Screw Size	M3
Material Flammability Rating	UL94 V-0
RoHS Status	RoHS Compliant

5435750 Product Details

5435750 Overview

Mounting type Free Hanging (In-Line) is assigned to the device.A Bulk case is used for packaging.This product is part of the BCP Series.This feature renders it more powerful in a number of ways because of its Retention Latches (Non-Wire Side) feature.Cable, Free Hanging is used to mount the part.There are many benefits that this part shares with other Plug, Female Sockets products as well.
